FEATURES:

• Optimized and tuned with GEN Series Cameras
• Compatible with 1.3 to 5MP Cameras
• CS-Mount
• 1/2.5″ Optical Format
• Fixed Iris Range

SPECIFICATIONS:

Focal Length:

• 6mm

F-Stop:

• F1.6

Focus Operation:

• Manual

Iris Operation:

• Fixed

FOV (Horizontal):

• 1/2.5″ : 54°
• 1/2.8″ : 51°
• 1/3.2″ : 42°

Image Format:

• Max. 1/2.5″ Sensor

TV Distortion:

• 6% with 1/2.5″ Sensor

Mount Type:

• CS

Operation Temp:

• -4°F – 140°F

Dimension:

• Ø30m x 22.2mm / Ø1.18″ x 0.87″

Weight:

• 28g / 0.06Lbs

INCLUDED:

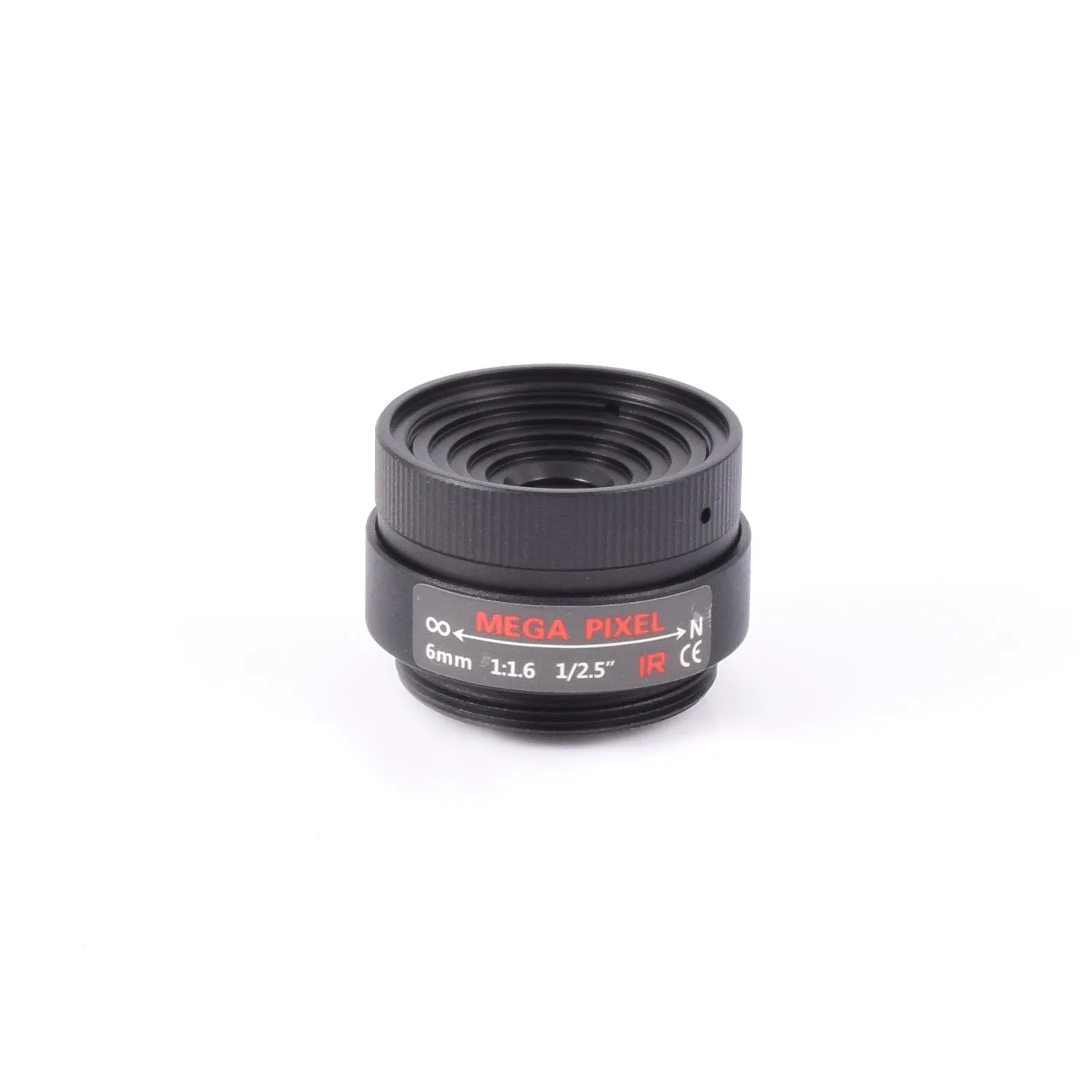

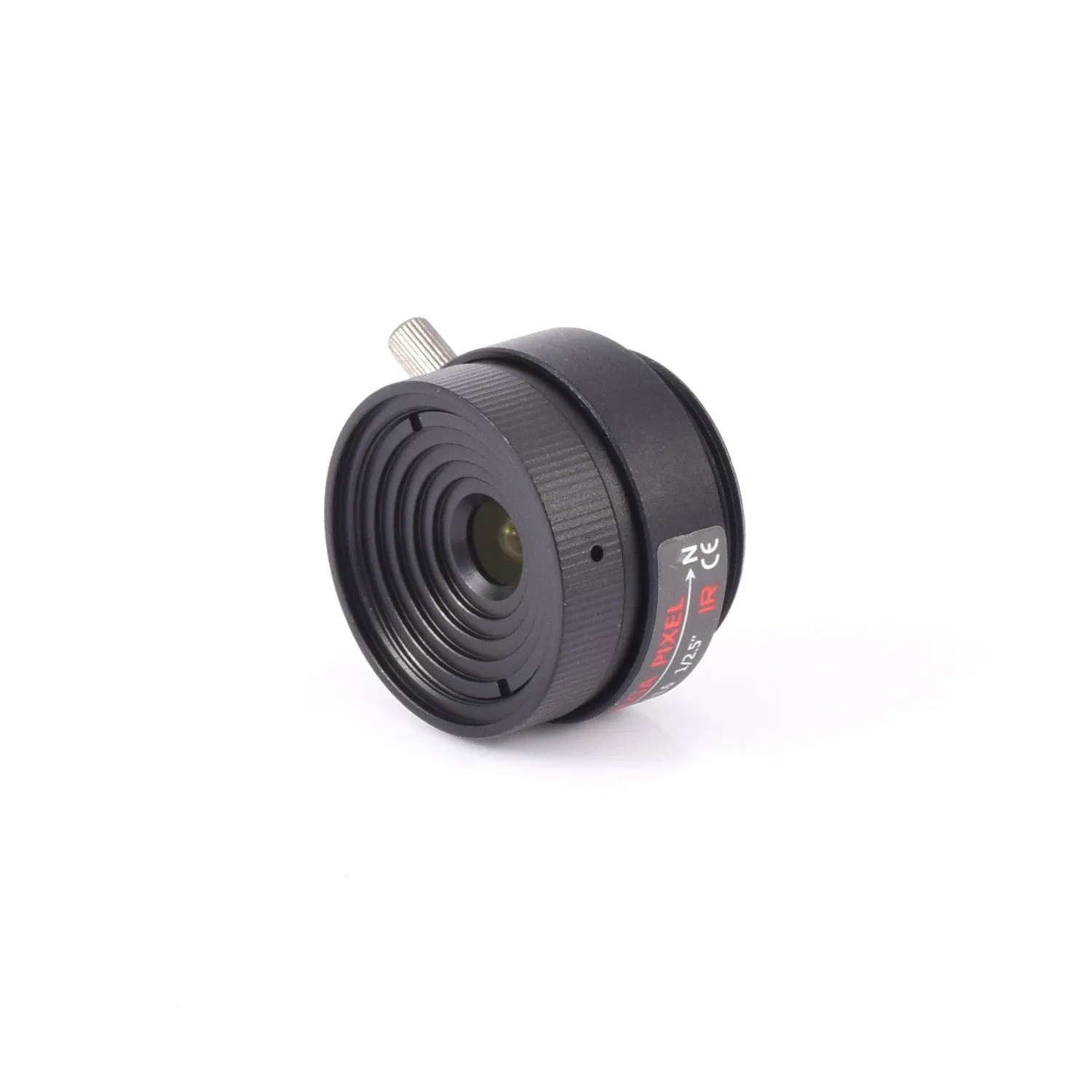

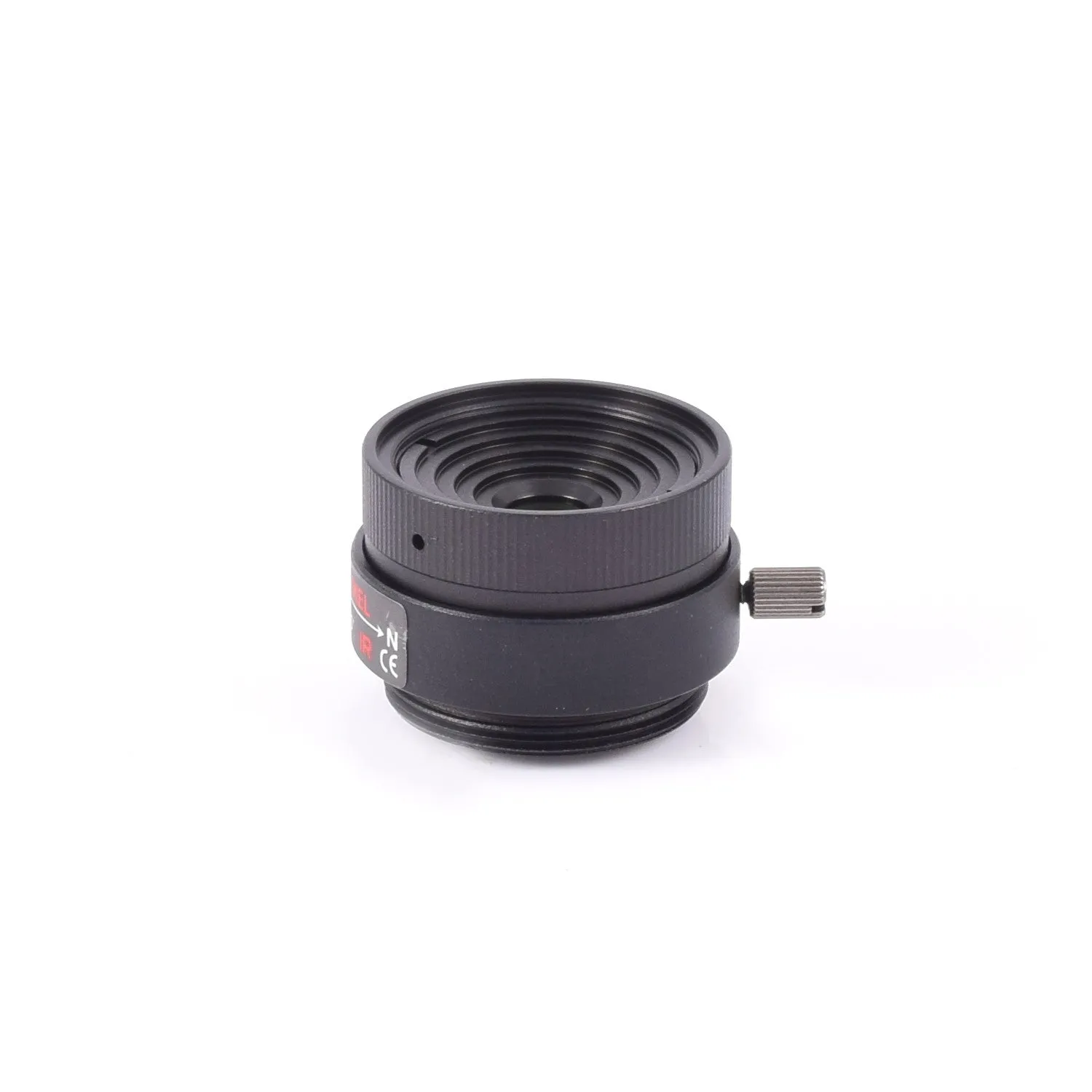

• (1) CS-6.0F Mega-Pixel Lens
