Name: AmScope M500 Series Student Monocular Compound Microscope 40X-1600X Magnification with USB Camera
SKU: 768655

Product Details ＋

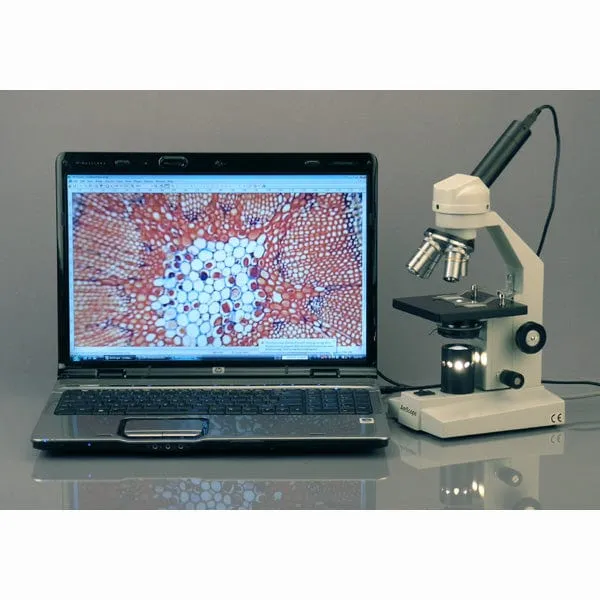

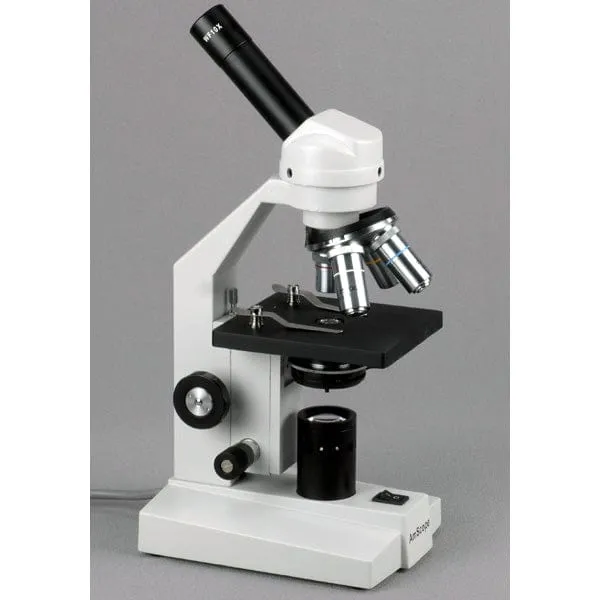

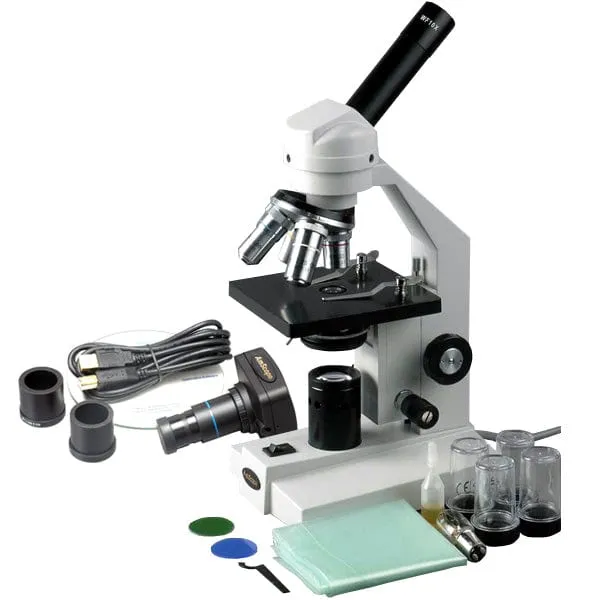

This is a brand new compound microscope with USB digital image system that captures microscope images and displays live video on your computer screens. It comes with eight magnification settings (40X, 64X, 100X, 160X, 400X, 640X, 1000X & 1600X), coarse & fine focusing and electrical illuminating system.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system meets all the requirements of the textbooks up to college. It is a perfect system for teaching demonstration or clinical examination. It is also an ideal microscope for family or home school applications.

Features:

A great affordable compound microscope with digital image system!
360 degree rotatable monocular head.
45 degree inclined eye tube.
Large plain stage with clips and stain resistant finish.
Separate coarse & fine focusing.
Fully coated optical system with high resolution.
Crystal clear sharp images.
High quality student microscope.
Perfect for up to high school students.
Eight levels of magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X.
Upward stage stopper for protecting slides and objectives.
Built-in electrical illumination system.
Abbe condenser with iris diaphragm filter holder.
Dual focusing control knobs.

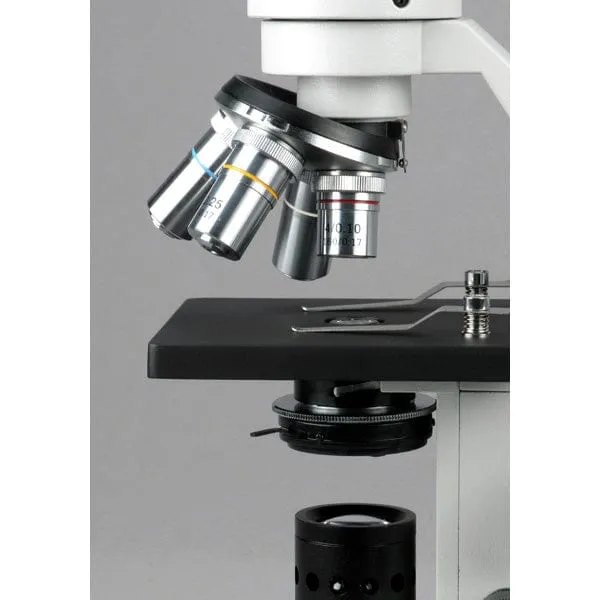

Four DIN Achromatic objectives.
Two (WF10X and WF16X) eyepieces included.
Full optical glass elements.
All metal mechanical components.
Precise ground glass lens.
Solid metal frame construction with stain resistant enamel finish.
Spare bulb, fuse and a bottle of immersion oil included.
Manufactured Under ISO 9001 Quality Control Standard
Excellent Five (5) Year Factory Warranty

Specifications:

Nosepiece: quadruple.
Head: 45 degree inclined monocular.
Wide-field Eyepieces: WF10X and WF16X.
Achromatic Objectives: 4X, 10X, 40X (spring), 100X (oil, spring).
Stage Dimensions: 4-3/8" x 4-3/4" (110x120mm).
Abbe Condenser: NA=1.25 with iris diaphragm filter.
Focusing Control: rack & pinion.
Illumination: tungsten lamp, 115V/20W.
Accessories: dust cover and a bottle of immersion oil.
Microscope Dimensions: 7-1/2" x 5-1/8" x 15-0".
Shipping Weight: 9 lbs.

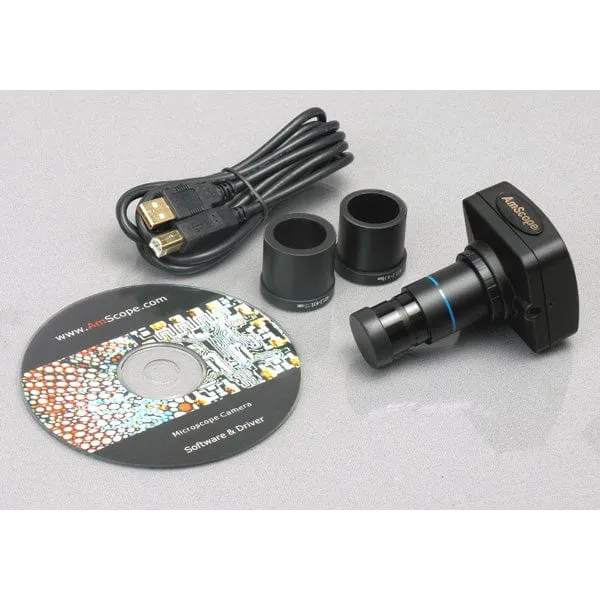

Camera Specifications:

Sensor: Aptina MT9V011
Sensor Type: CMOS
Sensor Size: 3.58x2.69mm
Pixel Size: 5.6
Resolution: 0.3MP
Frame Rate: 30@640x480, 80@320x240
Sensitivity: 1.9V/lux-sec
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8 , Linux kernel 3.13
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
