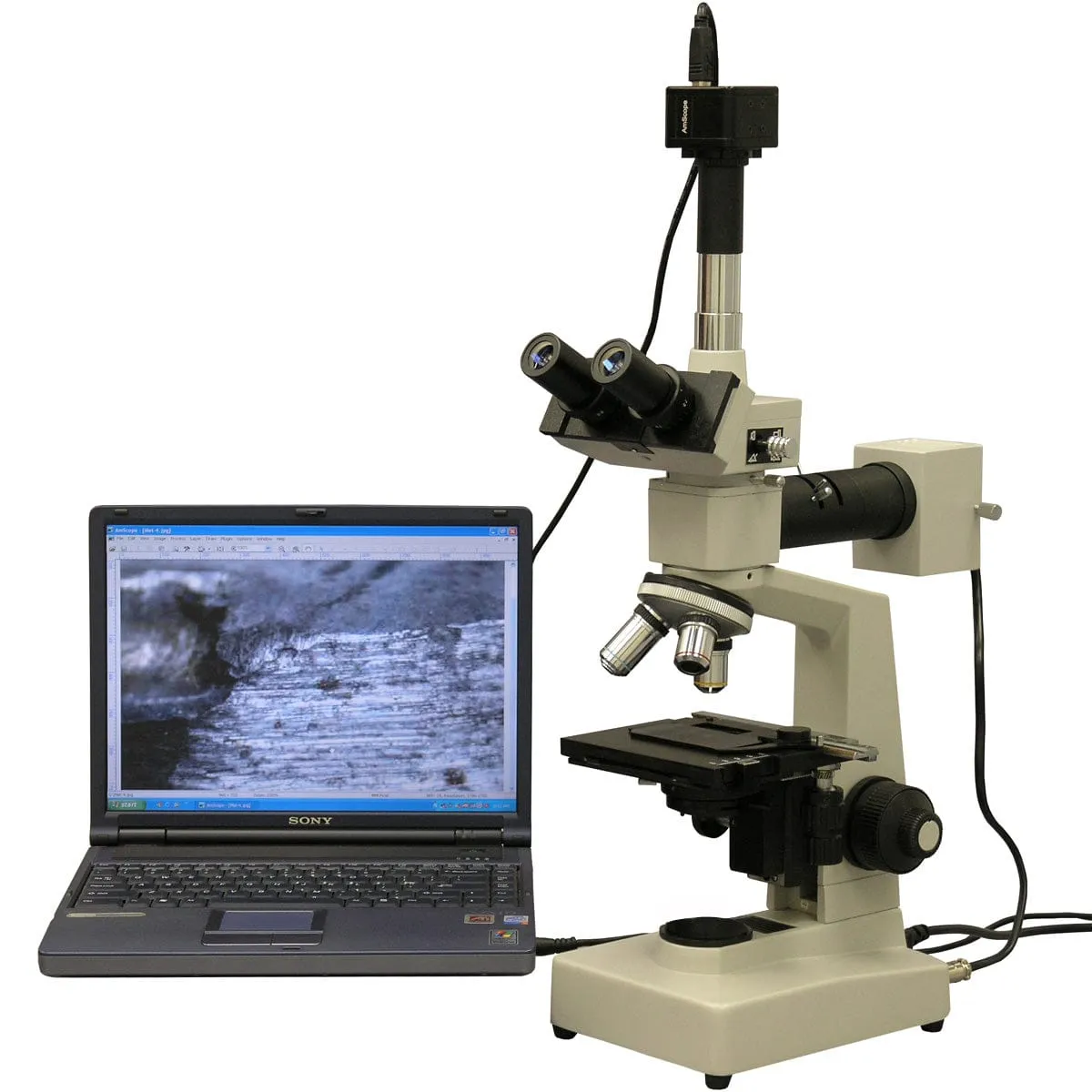

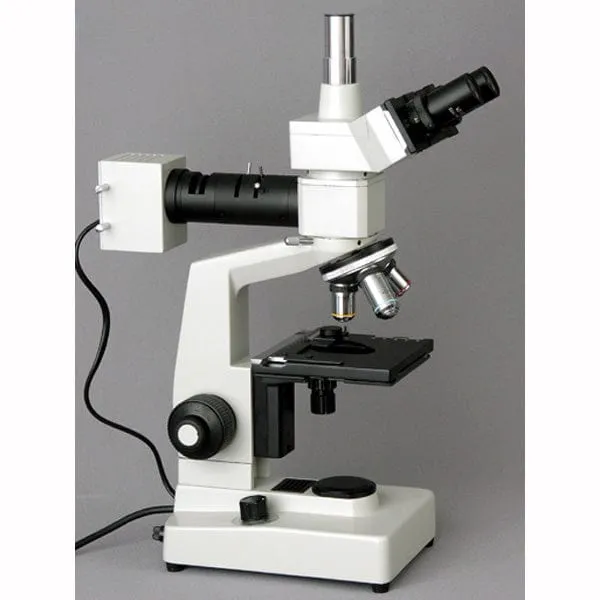

Name: AmScope ME300 Series Metallurgical Trinocular Compound Microscope 40X-640X Magnification with 1.3MP USB 2.0 Camera
SKU: 852631

Product Details ＋

This metallurgical microscope with 1.3MP digital camera offers six magnification settings (40X, 64X, 100X, 160X, 400X and 640X) with EPI halogen illumination. It comes with a 30 degree inclined 360 degree rotatable trinocular head, coarse & fine focusing and two-layer mechanical stage.

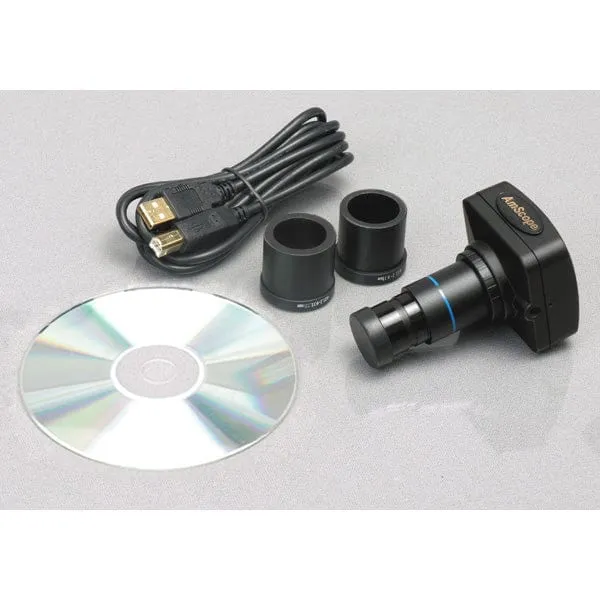

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

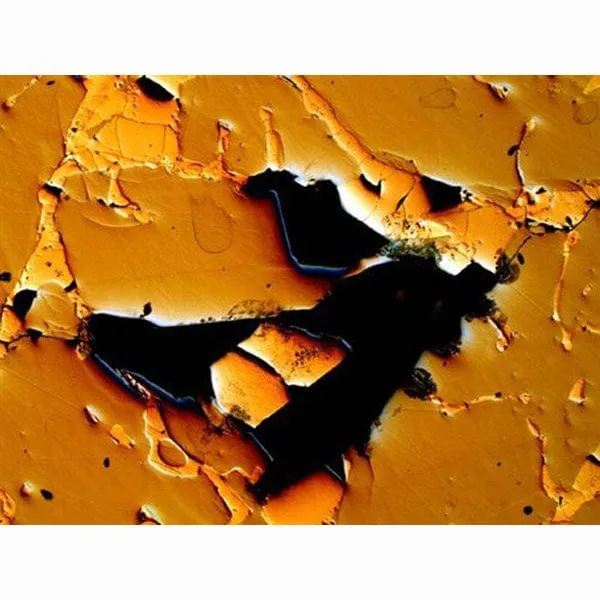

This microscope is an ideal instrument for metallurgical, mineral and crystal identification, silicon wafer inspection in foundries and quality control in industries.

Features:

High quality trinocular professional upright metallurgical metallographic microscope with reflected (EPI) illumination system!
Perfect for detail examination and micro-analysis of surface structures of metallic materials!
Excellent for quality control in industrial and research applications including silicon wafer inspection and foundries!
Six magnification settings: 40X, 64X, 100X, 160X, 400X and 640X

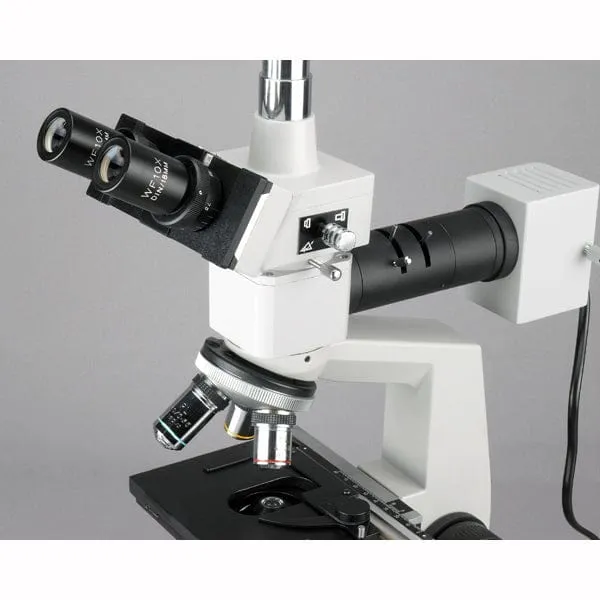

30 degree inclined 360 degree rotatable sliding trinocular head
Fully coated optical system with high resolution
23mm universal/standard photo port
Adjustable interpupillary distance
Adjustable diopters on both eye tubes
Three superior quality PLAN DIN objectives, 4X, 10X, 40X (spring)

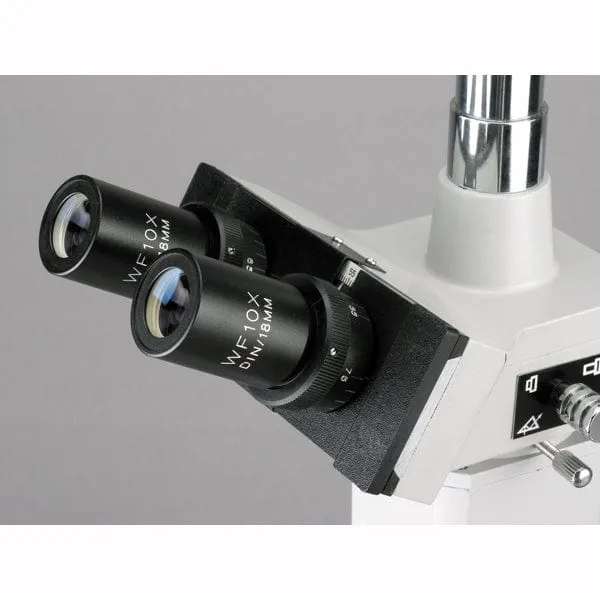

Two pairs of widefield eyepieces, 10X and 16X
Advanced EPI-illumination design offers excellent halogen illumination and optimal image clarity
Epi-Illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls

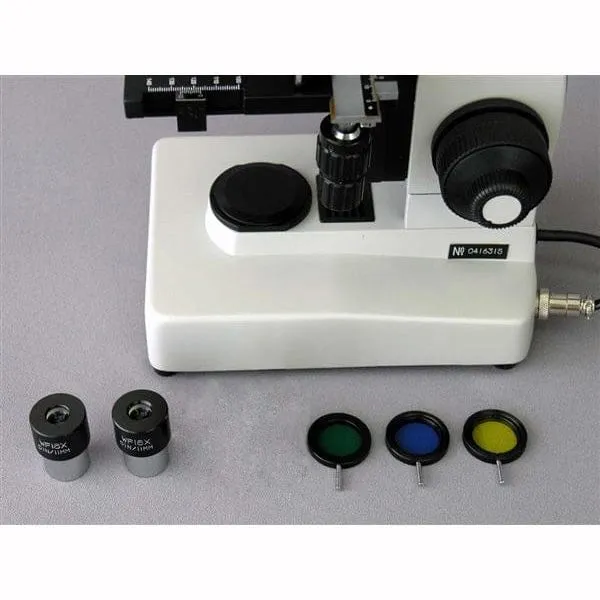

Yellow, blue, green, and frosted filters included
Coaxial coarse and fine focusing system
Dual side focusing controls
Focusing tension control mechanism
Locking mechanism for controlling coarse focusing range and protecting objectives and specimens
Large graduated mechanical stage with stain resistant finish
Low position coaxial X-Y stage traveling controls
Solid metal frame construction with stain resistant enamel finish
Full optical glass elements
Precise ground glass lenses
All metal mechanical parts
Manufactured Under ISO 9001 Quality Control Standard
Excellent Five (5) Year Factory Warranty

Specifications:

Nosepiece: Quadruple
Focusing Range: 1-9/16" (40mm)
Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
Mechanical Tube Length: 6-5/16" (160mm)
Head: 30 degree inclined trinocular
Trinocular Port: 23mm universal/standard photo tube
Eyepieces: WF10X (18mm field of view), Widefield 16X (11mm)
Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA), 100X (spring, 1.25NA)
Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
Vernier Division: 0.004" (0.1mm)
Illumination: 20W halogen
Power Supply: 110V
Shipping Weight: 25 lbs

Camera Specifications:

Sensor: Aptina MT9M111
Sensor Type: CMOS
Sensor Size: 4.6x3.7mm
Pixel Size: 3.6
Resolution: 1.3MP
Frame Rate: 15@1280x1024, 26@640x512, 50@320x256
Sensitivity: 1.0V/lux-sec
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8 , Linux kernel 3.13
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
