Product Details
＋

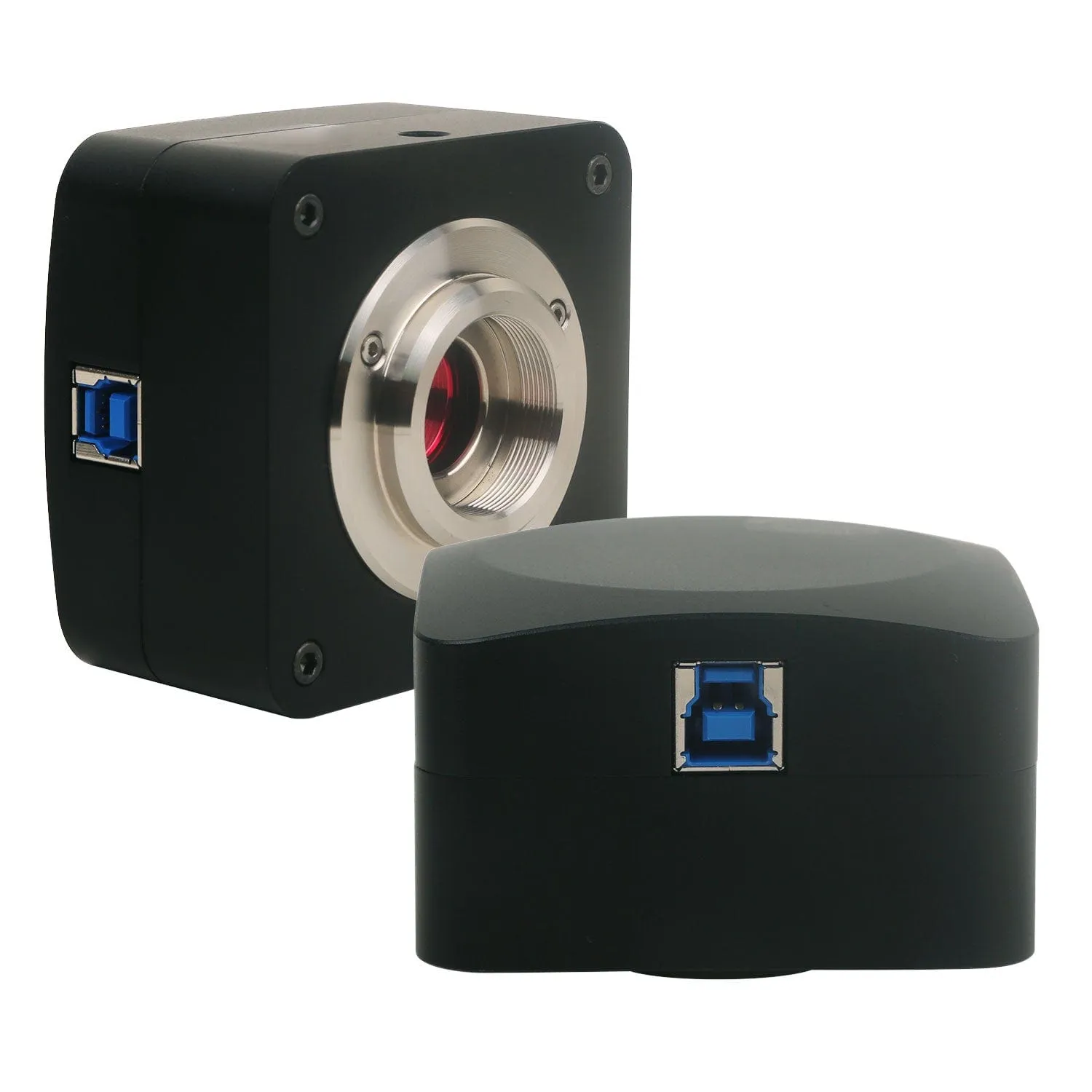

The MU1203-CCD-FL is a highly-sensitive 12-megapixel CCD digital camera. The large sensor provides a high signal-to-noise ratio, delivering excellent results in low-light applications such as fluorescence and dark-field microscopy.
With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Sensor
| Sensor | Sensor Type | Shutter | Sensitivity
?
|
|---|---|---|---|
| Sony ICX834AQG | CCD (color) | Global Shutter | 420mV @ 1/30s (f5.6) |
| Sensor Size | Pixels | Pixel Size |
|---|---|---|
| 1" format (13.15mm x 8.77mm) | 12 Megapixels | 3.1µm x 3.1µm |
Camera
| Frame Rate(s) | Connectivity | Lens-mount | Compensating Lens | Compatibility |
|---|---|---|---|---|
| 3.6fps @ 4284x2836 3.6fps @ 2124x1418 |
USB 3.0 | C-mount | -- | Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux |
Software
| OS Requirements | Windows (32/64 bit) 8.1/10/11, Mac OS 10.8 , Linux kernel 3.13 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed | ||||||||||||||||||
| Features |
|
