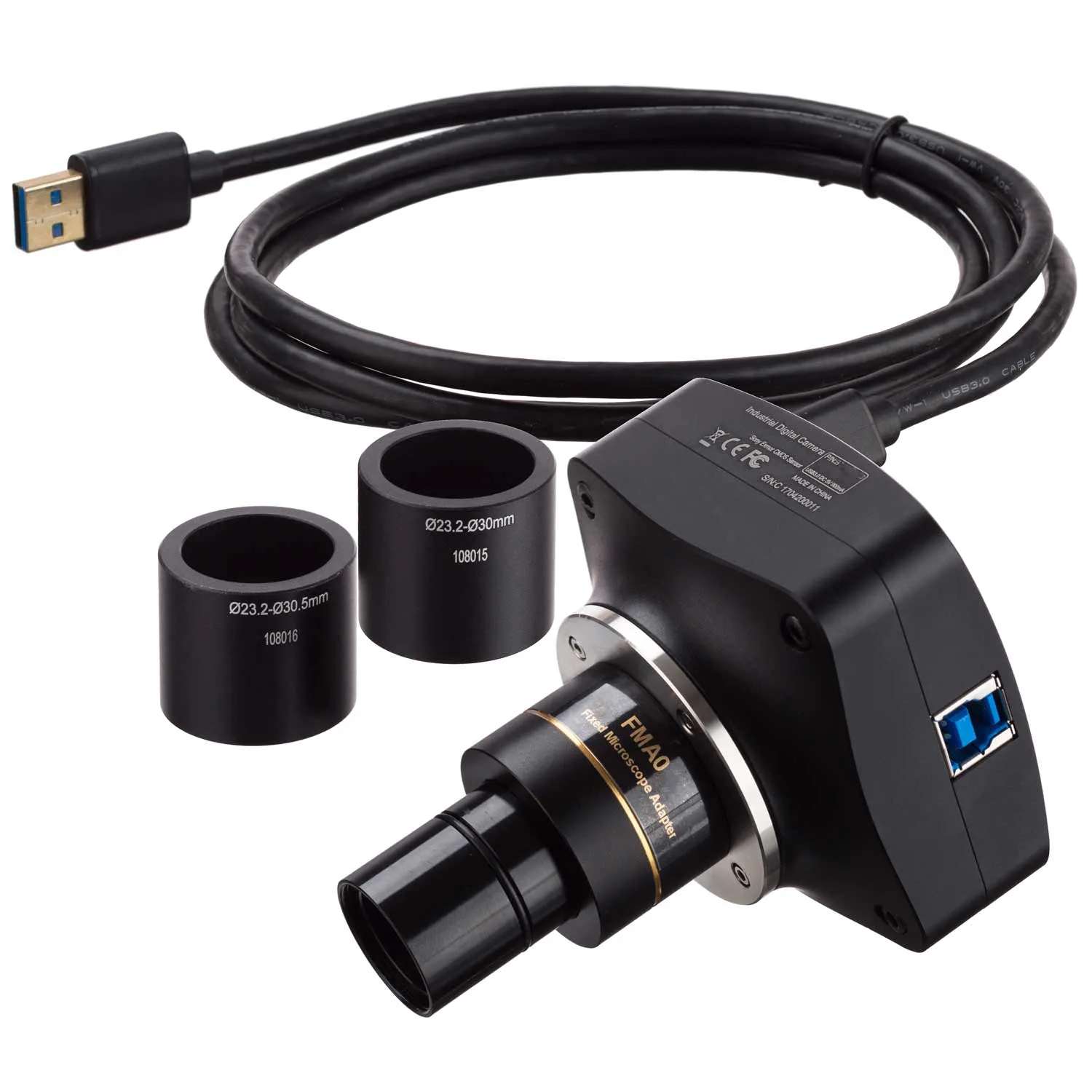

The MU153-GS is a highly-sensitive, high-speed global-shutter camera designed for low-light microscopy applications including fluorescence. The 1.5MP sensor favors speed and sensitivity over resolution. Able to capture faint signals, the sensor can rapidly produce images with a maximum framerate of 164fps at full resolution, and 320fps at lower resolution. Using a global shutter, the camera does not suffer from rolling-shutter distortion. This will be beneficial when imaging moving specimens.
With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Sensor
| Sensor | Sensor Type | Transfer Method | Binning | Sensitivity ?
|
|---|---|---|---|---|
| Sony IMX273 | Color CMOS | Global Shutter | 1x1 | 1146mv @ 1/30s |
| Optical Format | Sensor Size | Pixels | Pixel Size | Aspect Ratio |
| 1/2.9" | 4.97mm x 3.73mm | 1.5M | 3.45µm x 3.45µm | 4:3 |
Camera
| Spectral Range (IR Cut Filter) |
Frame Rate(s) (Maximum) |
Exposure Time | Connectivity |
|---|---|---|---|
| 380nm - 650nm | 164fps @ 1440x1080 320fps @ 720x540 |
0.1ms - 15s | USB 3.0 |
| Lens-mount | Compensating Lens | Power | Compatibility |
|---|---|---|---|
| C-mount | 0.37X | 5V over USB | Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux |
Software
| OS Requirements | Windows (32/64 bit) 8.1/10/11, Mac OS 10.8 , Linux kernel 3.13 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed | ||||||||||||||||||
| Features |
|
