Product Details
＋

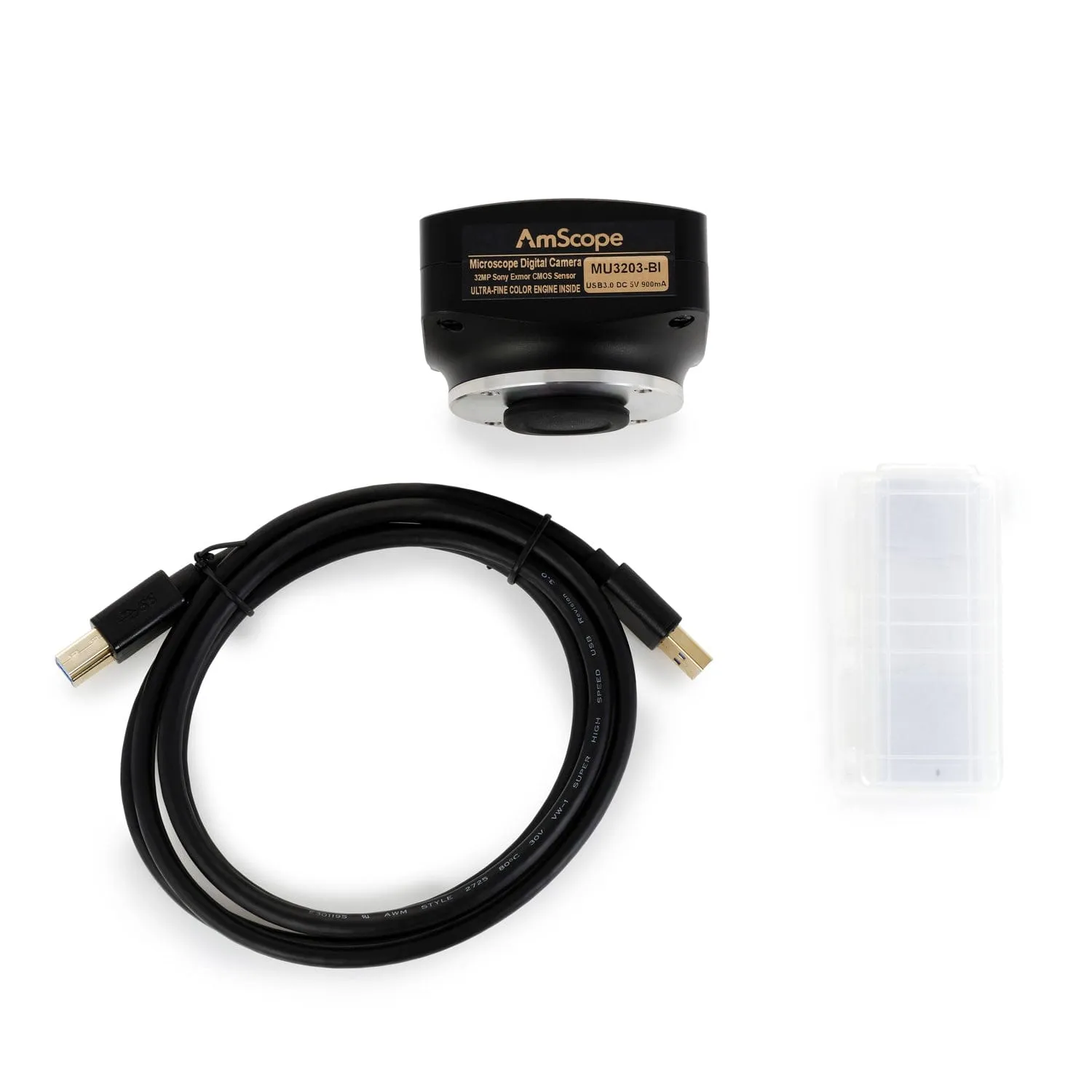

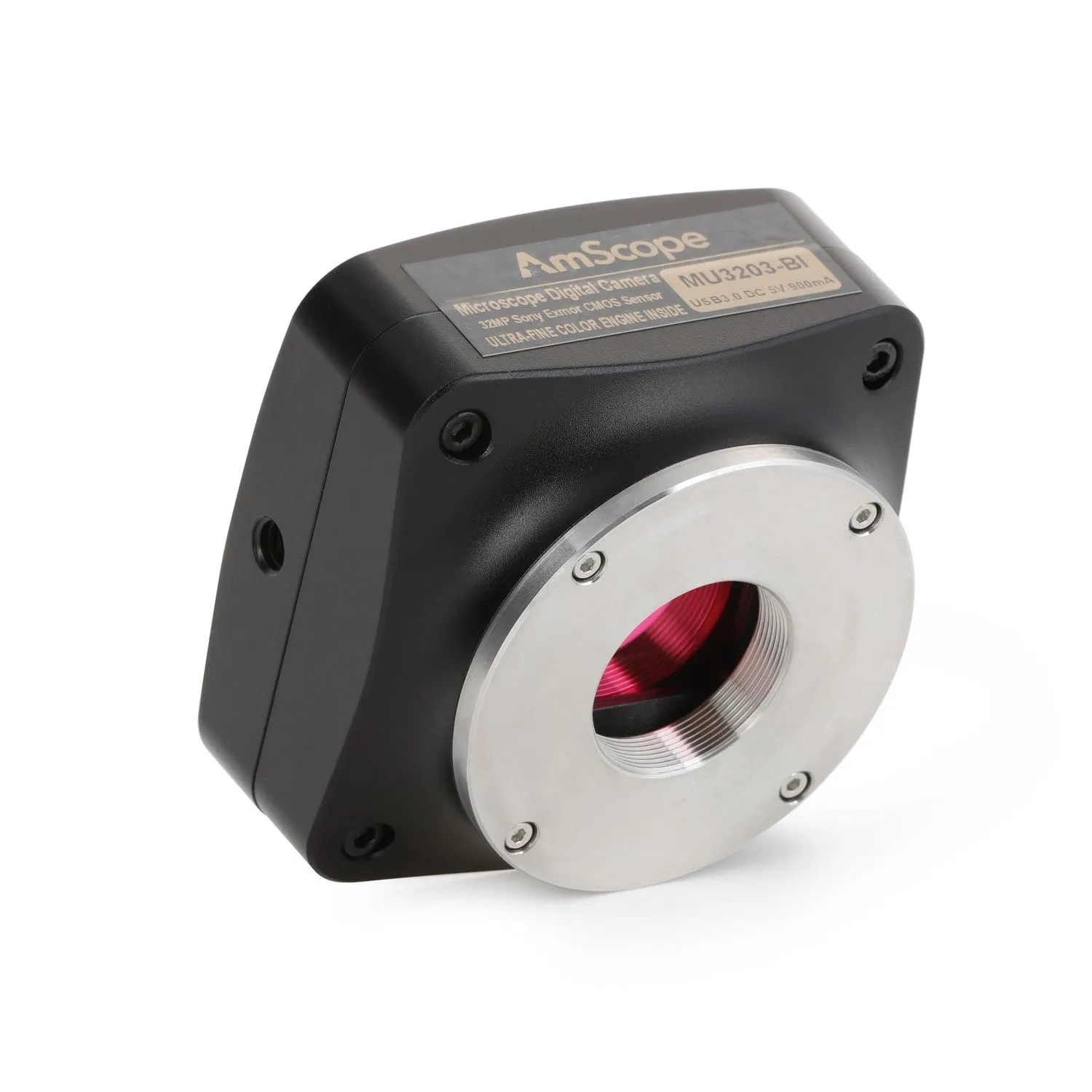

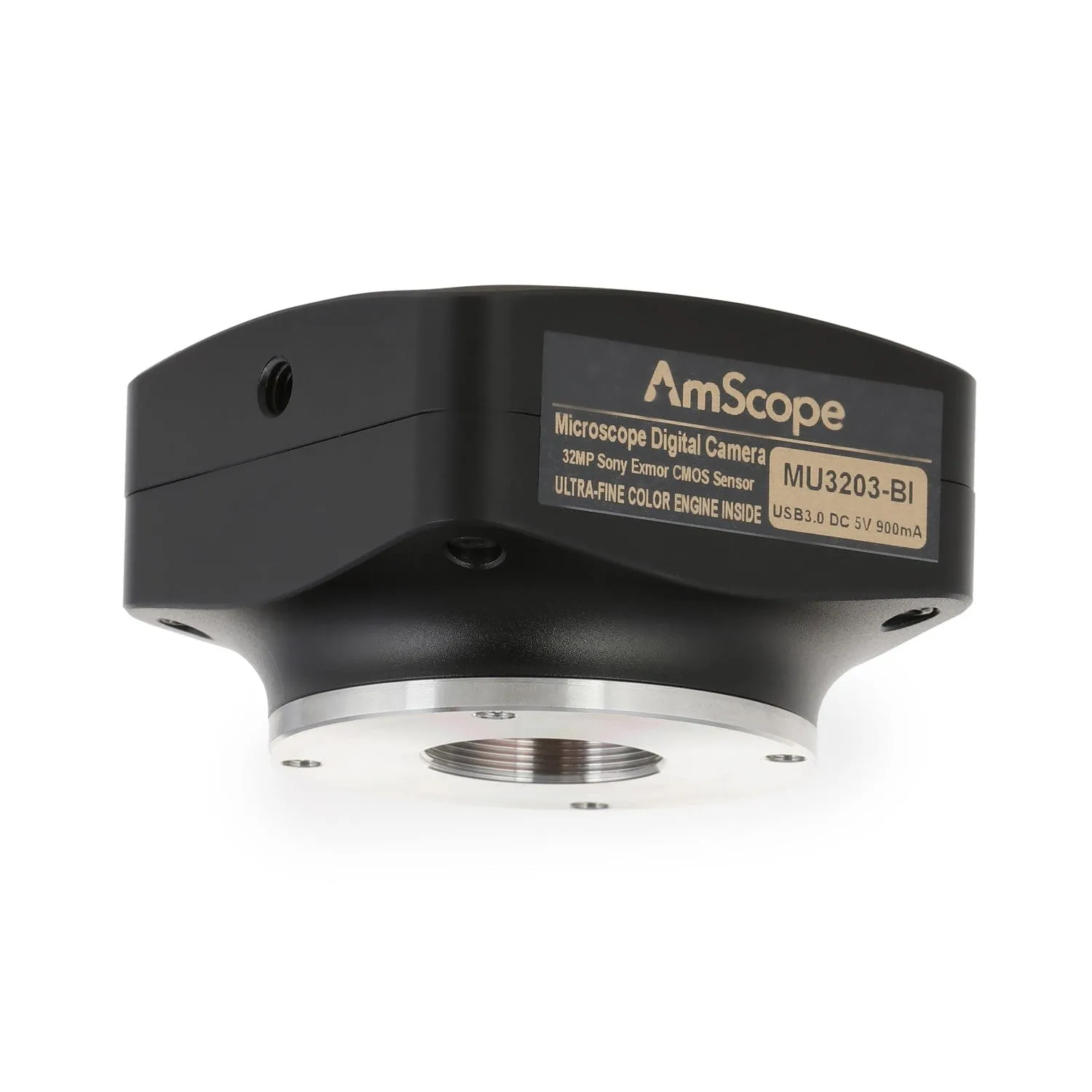

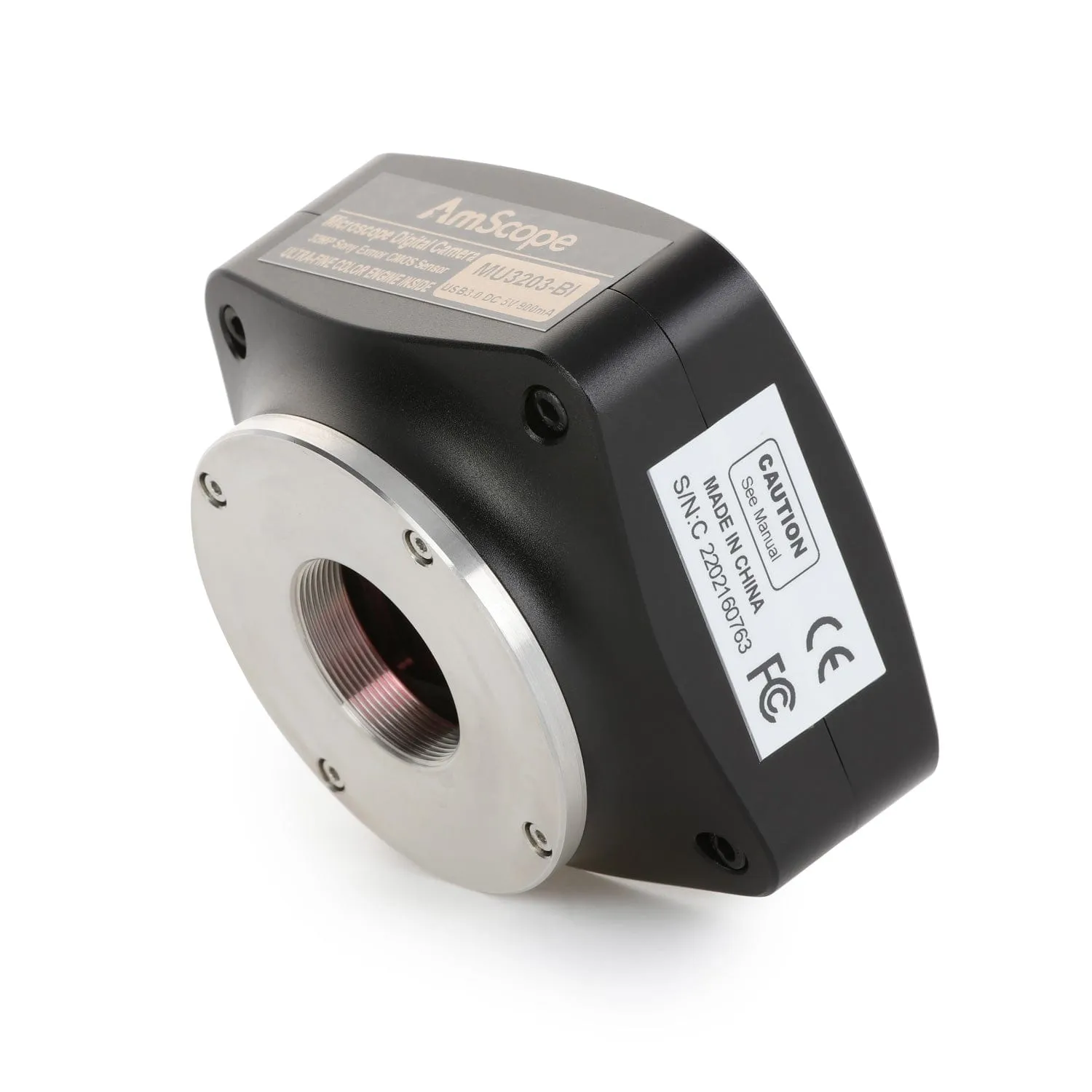

The 32MP MU3203-BI is a high-resolution microscopy camera designed to capture incredible detail with accurate colors. This camera uses a 1.15" format sensor, and is ideally suited for use with microscopes with C-mount photo ports. It can be paired with our RU100 1X compensating lens to mount in 23mm ocular tubes, but some vignetting may occur.
The included software for Windows, Mac, and Linux provides an imaging solution for photography and videography. The Windows (8.1/10/11/11) version provides an extensive toolset for image-processing and measurements. A lite version of the application is provided for Mac and Linux.
Specifications
| Sensor Specifications | |
| Sensor Type | CMOS |
| Sensor Optical Format | 1.15" |
| Active Pixels | 31.36M (5600 x 5600) |
| Pixel Size | 2.315µm x 2.315µm |
| Active Sensor Area | 12.96mm x 12.96mm |
| Shutter | electronic rolling shutter |
| Spectral Response | 380-650nm with IR-cut filter |
| Other Camera Specifications | |
| Binning | 1x1, 2x2, 4x4 |
| Video Capture Framerate | 8.1fps @ 5600x5600 30fps @ 2800x2800 30fps @ 1400x1400 |
| Photo Capture Resolution | 5600x5600 2800x2800 1400x1400 |

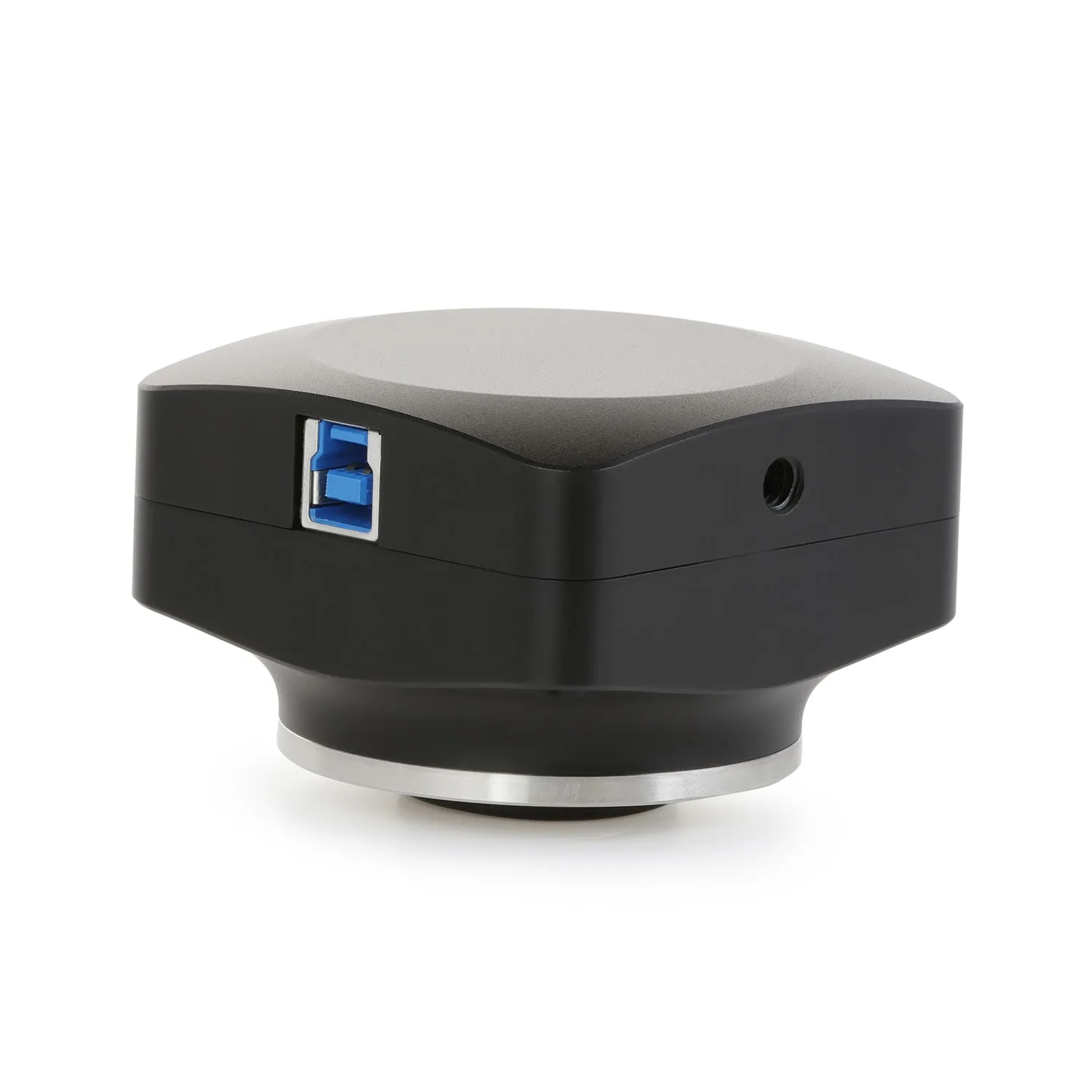

| Connectivity | USB 3.0 |
| Lens-mount | C-mount |
| Compensating Lens | 1X (optional) |
| Power | 5VDC over USB |
| Operating Temperature | -10-50°C |
| Operating Humidity | 30-80% |
Software
| OS Requirements | Windows (32/64 bit) 8.1/10/11, Mac OS 10.8 , Linux kernel 3.13 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
| Features |
|
