High density, double-conversion on-line power protection with scalable runtime.

• Primary Information

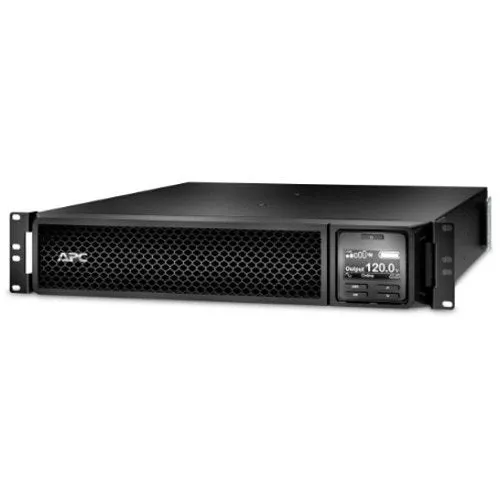

  Product Description:	APC Smart-UPS SRT 3000VA RM Network Card - UPS - 2700 Watt - 3000 VA - with APC UPS Network Management Card AP9631
  Device Type:	UPS - rack-mountable
  Rack Size:	2U
  Weight:	69 lbs
  Input Voltage:	AC 120 V
  Output Voltage:	AC 120 V
  Power Capacity:	2700 Watt / 3000 VA
  Input Connectors:	1 x power NEMA L5-30P

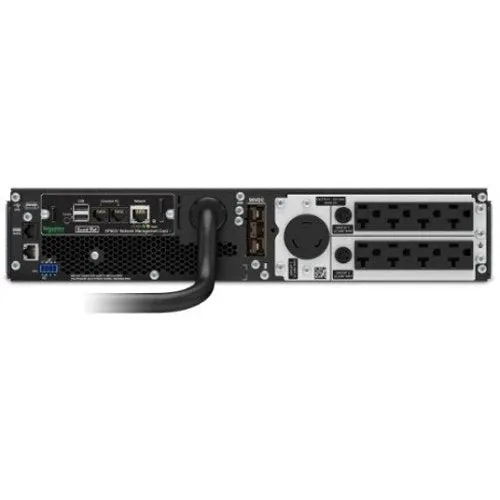

  Output connectors:	8 x power NEMA 5-20R ¦ 1 x power NEMA L5-30R
  Battery:	Lead acid
  Run Time (Up To):	3 min at full load
  Networking:	USB
  Included Accessories:	Rack mounting rails
  Color:	Black
  Dimensions (WxDxH):	17 in x 25 in x 3.3 in
  Environmental Standards:	ENERGY STAR
  Manufacturer Warranty:	3-year warranty
  Bundled with:	APC UPS Network Management Card AP9631
  Designed For:	P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A, SMX3000HVTUS, SRT1500RMXLA

• General

  Device Type:	UPS - rack-mountable
  Height (Rack Units):	2U
  Color:	Black
  Bundled with:	APC UPS Network Management Card AP9631

• Power Device

  UPS Technology:	On-line
  Input Voltage:	AC 120 V
  Frequency Provided:	50/60 Hz
  Frequency Required:	40 - 70 Hz
  Input Connectors:	1 x power NEMA L5-30P
  Power Output Connectors Details:	8 x power NEMA 5-20R ¦ 1 x power NEMA L5-30R
  Output Voltage:	AC 120 V 50/60 Hz
  Power Capacity:	2700 Watt / 3000 VA
  Output Waveform:	Sinewave
  Surge Suppression:	Yes
  Surge Energy Rating:	340 Joules

• Battery

  Technology:	Lead acid
  Run Time (Up To):	3 min at full load ¦ 10 min at half load
  Recharge Time:	3 hours
  Features:	Maintenance free, sealed, leak-proof

• Networking

  Remote Management Interface:

  USB

• Expansion / Connectivity

  Interfaces:	1 x serial - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type A ¦ 1 x EPO (emergency power off)
  Expansion Slots:	1 (total) / 0 (free) x SmartSlot

• Miscellaneous

  Included Accessories:	Rack mounting rails
  Cables Included:	Power cable 8 ft ¦ USB cable - external
  Rack Mounting Kit:	Included
  Features:	Audible alarm, emergency power off, LCD display, internal bypass
  Compliant Standards:	UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20, OSHPD

• Software / System Requirements

  Software Included:

  Drivers & Utilities

• Sustainability Information

  ENERGY STAR:

  Yes

• Manufacturer Warranty

  Service & Support:

  Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	104 °F
  Humidity Range Operating:	0 - 95% (non-condensing)
  Sound Emission:	55 dBA

• Dimensions & Weight

  Width:	17 in
  Depth:	25 in
  Height:	3.3 in
  Weight:	69 lbs

• Dimensions & Weight (Shipping)

  Shipping Width:	23.6 in
  Shipping Depth:	34.3 in
  Shipping Height:	9.7 in
  Shipping Weight:	88.01 lbs
