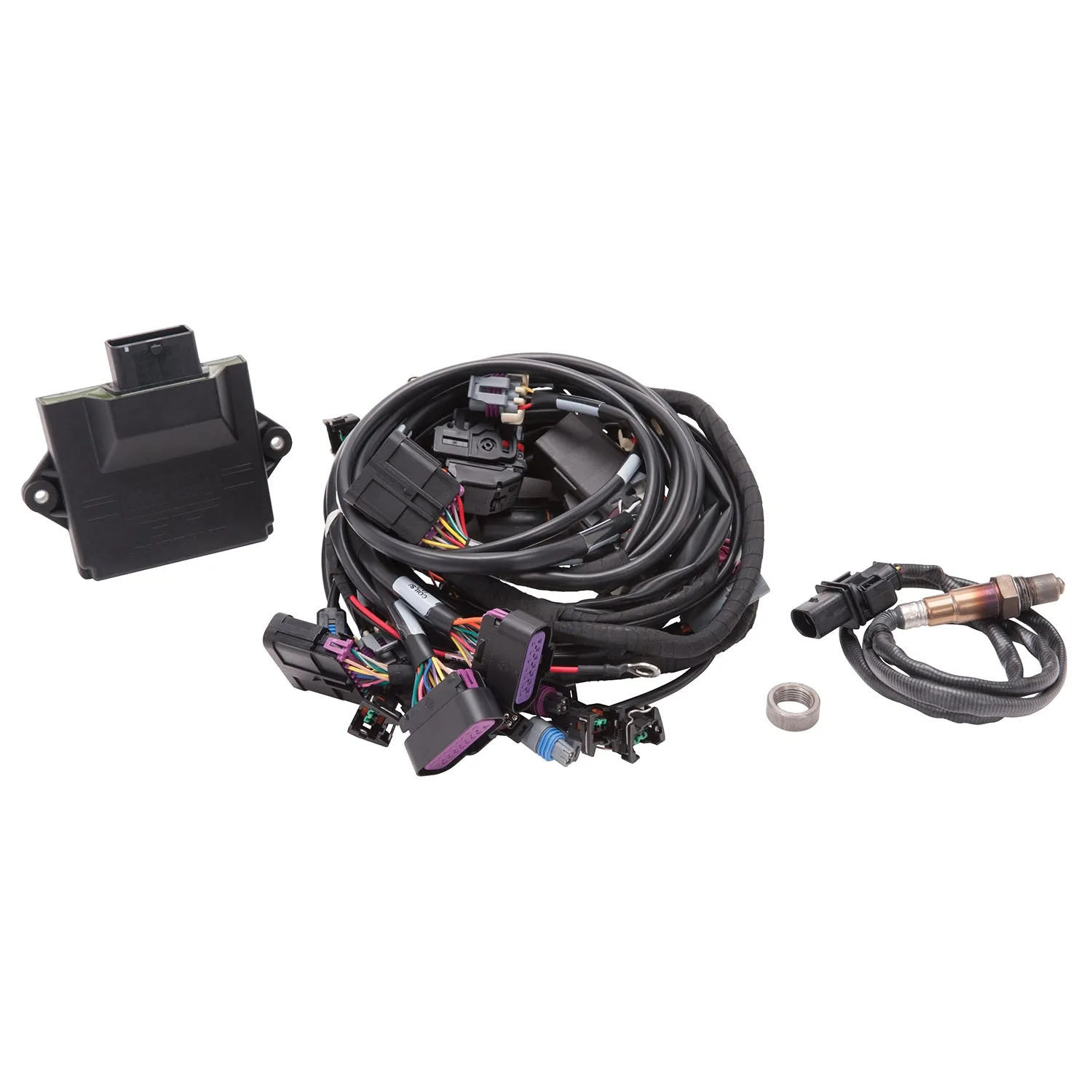

If you're installing a Gen III Chevy LS engine into a hot rod, street machine or any non-EFI vehicle and want to retain the LS engine's OEM electronic fuel injection system, the new Pro-Flo 4 LS ECU & Harness Kit w/o Tablet #357110 is what you'll need to complete the installation and get your Gen III LS up and running to its full potential. This kit is designed specifically for the Gen III LS engine with a 24X reluctor identified by the gray camshaft sensor mounted in the timing cover. The compact ECU and harness integrate seamlessly with the existing LS injectors, coils, camshaft/crank sensors and other factory intake manifold connections to greatly simplify the installation, start-up and performance tuning processes. This kit provides the perfect solution for those "junkyard" LS engine swaps where the factory ECU and wiring harness may be missing or damaged. The Gen III LS ECU & Harness Kit #357110 can be used for any level of LS performance, and what makes this kit so unique and easy to use is the Edelbrock E-Tuner application, which eliminates the need for laptop tuning or costly dyno sessions. The E-Tuner is a user-friendly app that uses Bluetooth connectivity to communicate with the ECU can be downloaded free of charge in the Google Play Store to use with your Android-based tablet or smartphone. (Edelbrock ECU & Harness Kit #35711 includes a 7-inch Android tablet with E-Tuner app preinstalled.) The key to the E-Tuner's simplicity is a Setup Wizard that guides you step by step through the initial programming for your particular engine. Once you provide the Setup Wizard with basic data (type of engine, cubic inches, firing order, cam profile), the E-Tuner then selects the most appropriate base calibration for your engine. As you drive the vehicle, the self-learning E-Tuner continually maximizes the fuel map according to the environment and your driving style so that your engine is always performing at its best.

Specifications:

Description_ABR	ECU/Harness
Description_DEF	Engine Control Module (ECM)
Description_DES	ECU/HARNESS KIT
Description_EXT	Edelbrock Pro-Flo 4 ECU & Harness Kit w/o Tablet #357110 is for use with Chevrolet Gen III 24X LS engine installations into non-EFI vehicles. Allows you to retain the LS engine's OEM electronic fuel injection system.
Description_EXT	Edelbrock Pro-Flo 4 ECU Harness Kit w/o Tablet #357110 is for use with Chevrolet Gen III 24X LS engine installations into non-EFI vehicles. Allows you to retain the LS engine s OEM electronic fuel injection system.
Description_FAB	24 Month Warranty
Description_INV	Pro-Flo 4 ECU & Harness Kit #357110
Description_INV	Pro-Flo 4 ECU Harness Kit #357110
Description_KEY	Edelbrock; Edelbrock Performance; Edelbrock USA; EFI; Pro-Flo 4 EFI; Chevy LS engine swaps; LS Engine; Chevy Gen III LS engine; ECU; electronic control unit; wiring harness; EFI upgrade; EFI engines; high-performance; fuel injection
Description_LAB	Pro-Flo 4 EFI - ECU & Engine Harness Kit for GEN III 24x LS Engines w/o Tablet
Description_LAB	Pro-Flo 4 EFI-ECU Engine Harness Kit for GEN III 24x LS Engines w/o Tablet
Description_MKT	If you're installing a Gen III Chevy LS engine into a hot rod, street machine or any non-EFI vehicle and want to retain the LS engine's OEM electronic fuel injection system, the new Pro-Flo 4 LS ECU & Harness Kit w/o Tablet #357110 is what you'll need to complete the installation and get your Gen III LS up and running to its full potential. This kit is designed specifically for the Gen III LS engine with a 24X reluctor identified by the gray camshaft sensor mounted in the timing cover. The compact ECU and harness integrate seamlessly with the existing LS injectors, coils, camshaft/crank sensors and other factory intake manifold connections to greatly simplify the installation, start-up and performance tuning processes. This kit provides the perfect solution for those "junkyard" LS engine swaps where the factory ECU and wiring harness may be missing or damaged. The Gen III LS ECU & Harness Kit #357110 can be used for any level of LS performance, and what makes this kit so unique and easy to use is the Edelbrock E-Tuner application, which eliminates the need for laptop tuning or costly dyno sessions. The E-Tuner is a user-friendly app that uses Bluetooth connectivity to communicate with the ECU can be downloaded free of charge in the Google Play Store to use with your Android-based tablet or smartphone. (Edelbrock ECU & Harness Kit #35711 includes a 7-inch Android tablet with E-Tuner app preinstalled.) The key to the E-Tuner's simplicity is a Setup Wizard that guides you step by step through the initial programming for your particular engine. Once you provide the Setup Wizard with basic data (type of engine, cubic inches, firing order, cam profile), the E-Tuner then selects the most appropriate base calibration for your engine. As you drive the vehicle, the self-learning E-Tuner continually maximizes the fuel map according to the environment and your driving style so that your engine is always performing at its best.
Description_SHO	{ Sellable : Yes }
Description_SHP	{ eo : 5in.}
Description_SLA	If you re installing a Gen III Chevy LS engine into a hot rod; street machine or any non-EFI vehicle and want to retain the LS engine s OEM electronic fuel injection system; our new Pro-Flo 4 LS ECU Harness Kit w/o Tablet #357110 is what you ll need to complete the installation and get your Gen III LS up and running to its full potential. This kit is designed specifically for the Gen III LS engine with a 24X reluctor identified by the gray camshaft sensor mounted in the timing cover. The compact ECU and harness integrate seamlessly with the existing LS injectors; coils; camshaft/crank sensors and other factory intake manifold connections to greatly simplify the installation; start-up and performance tuning processes. This kit provides the perfect solution for those junkyard LS engine swaps where the factory ECU and wiring harness may be missing or damaged. The Edelbrock ECU Harness Kit #357110 for the Gen IV can be used for any level of LS performance; and what makes this kit so unique and easy to use is our E-Tuner application; which eliminates the need for laptop tuning or costly dyno sessions. The E-Tuner is a user-friendly app that uses Bluetooth connectivity to communicate with the ECU and can be downloaded free of charge in the Google Play Store to use with your Android-based tablet or smartphone. (Our ECU Harness Kit #35711 includes a 7-inch Android tablet with E-Tuner app preinstalled.) The key to the E-Tuner s simplicity is our Setup Wizard that guides you step by step through the initial programming for your particular engine. Once you provide the Setup Wizard with basic data (type of engine; cubic inches; firing order; cam profile); the E-Tuner then selects the most appropriate base calibration for your engine. As you drive the vehicle; the self-learning E-Tuner continually maximizes the fuel map according to the environment and your driving style so that your engine is always performing at its best.
Description_SLA	If you're installing a Gen III Chevy LS engine into a hot rod, street machine or any non-EFI vehicle and want to retain the LS engine's OEM electronic fuel injection system, our new Pro-Flo 4 LS ECU & Harness Kit w/o Tablet #357110 is what you'll need to complete the installation and get your Gen III LS up and running to its full potential. This kit is designed specifically for the Gen III LS engine with a 24X reluctor identified by the gray camshaft sensor mounted in the timing cover. The compact ECU and harness integrate seamlessly with the existing LS injectors, coils, camshaft/crank sensors and other factory intake manifold connections to greatly simplify the installation, start-up and performance tuning processes. This kit provides the perfect solution for those "junkyard" LS engine swaps where the factory ECU and wiring harness may be missing or damaged. The Edelbrock ECU & Harness Kit #357110 for the Gen IV can be used for any level of LS performance, and what makes this kit so unique and easy to use is our E-Tuner application, which eliminates the need for laptop tuning or costly dyno sessions. The E-Tuner is a user-friendly app that uses Bluetooth connectivity to communicate with the ECU and can be downloaded free of charge in the Google Play Store to use with your Android-based tablet or smartphone. (Our ECU & Harness Kit #35711 includes a 7-inch Android tablet with E-Tuner app preinstalled.) The key to the E-Tuner's simplicity is our Setup Wizard that guides you step by step through the initial programming for your particular engine. Once you provide the Setup Wizard with basic data (type of engine, cubic inches, firing order, cam profile), the E-Tuner then selects the most appropriate base calibration for your engine. As you drive the vehicle, the self-learning E-Tuner continually maximizes the fuel map according to the environment and your driving style so that your engine is always performing at its best.
Description_TRA	Gen III 24X LS applications can be recognized by the rear-mounted cam position sensor which is black in color. The Gen IV 58X LS cam sensor is mounted in the timing cover and is gray in color. This kit is not for use with drive-by-wire applications. Does not include transmission control.
height	7.0
length	10.0
Quantity	Kit
Recommended Use	For Use With 24x Crank Trigger
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
System Type	ECU and Harness Kit
WARNING CA Proposition 65	Yes
WARNING CA Proposition 65 Message	WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov.
weight	5.2
width	8.0
Wiring Harness Included	Yes
