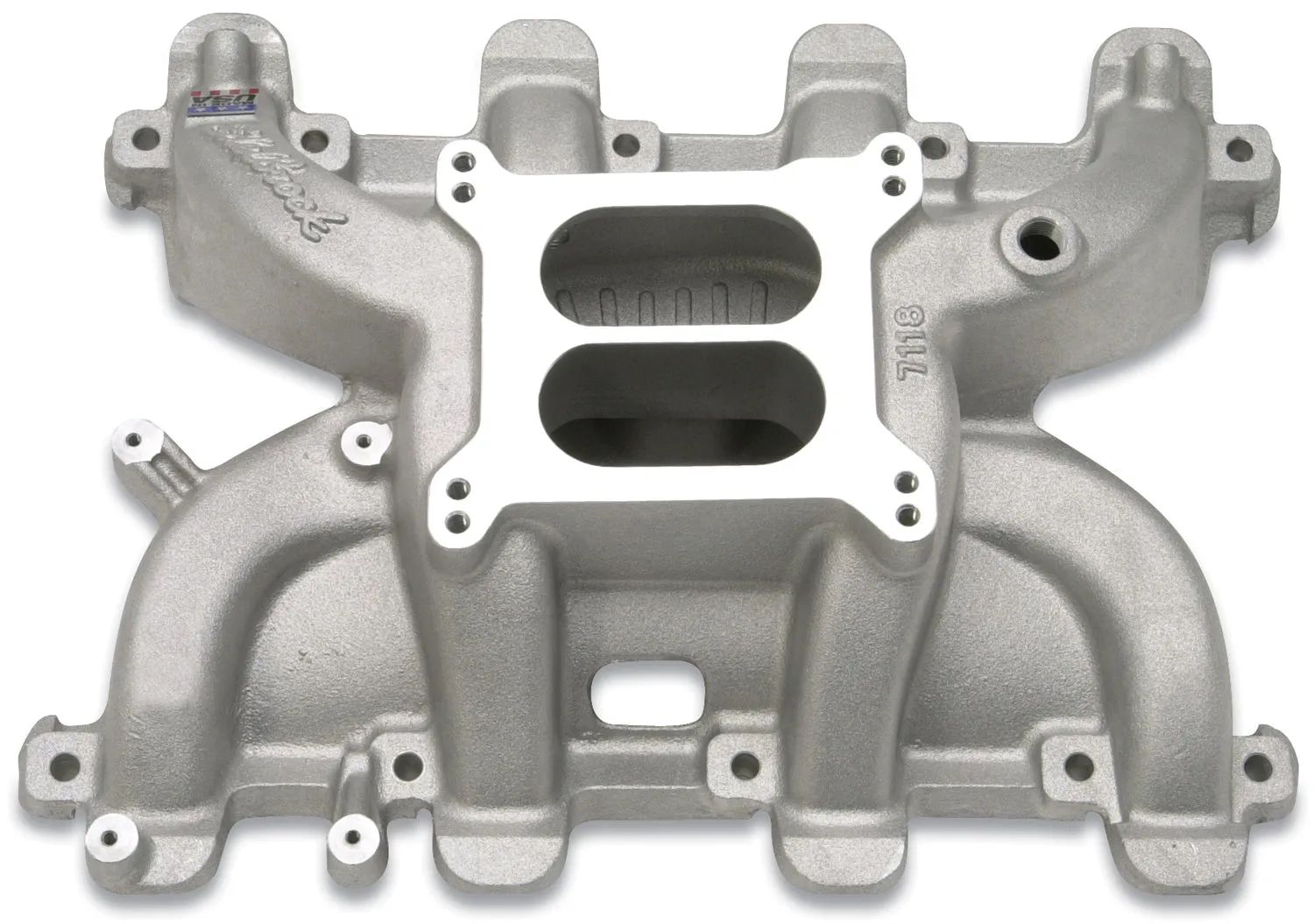

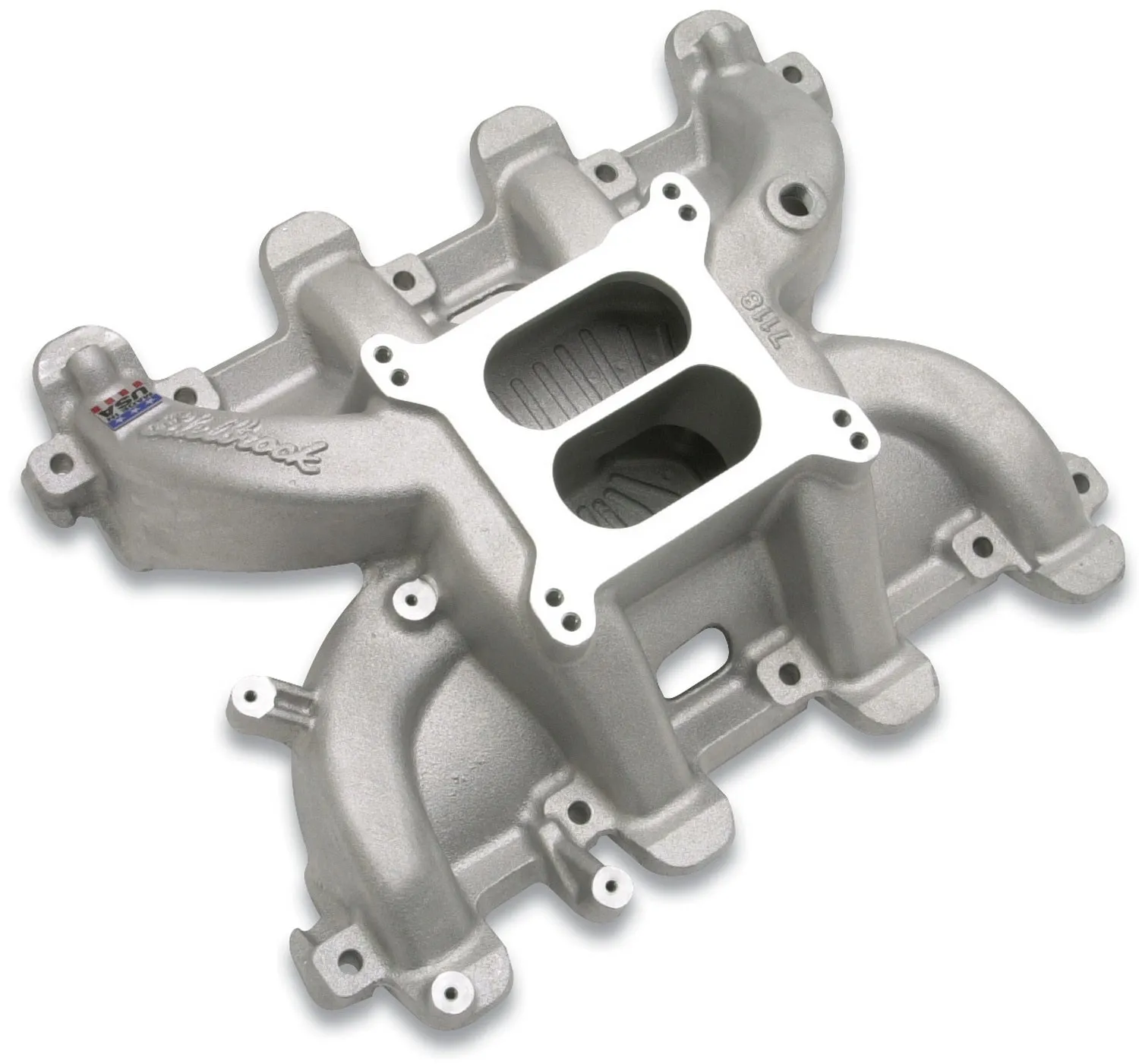

Edelbrock part #71187 Performer RPM LS1 intake manifold is designed for the popular Chevrolet LS1 (5.7L) small-block V8 originally used in 1997 and later Corvettes and 1998-02 Camaros and Firebirds. It also fits the Corvette LS6 engine and any other Gen III engine including the LM7 (5.3L), LR4 (4.8L), and LQ4 (6.0L). It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve from 1500 to 6500 rpm. The Performer RPM LS1 is available with an optional wiring harness and electronic Timing Control Module made by MSD this ignition module is for LS1 (24x) ignitions only and works with OE sensors to fire the Coil-on-Plug ignition system and offers a choice of six timing curves (sold separately). A special throttle and trans bracket that works with 700R-4, 200R-4 and Turbo 350 transmissions is included, making the LS1 engine an easy retro-fit into any muscle car, street rod or marine application.

Specifications:

Basic Operating RPM Range	1500-6500
Center Maximum Height	4.950
CNC Ported	No
Description_ABR	Intake Mnfld
Description_ASM	Chevrolet:Small-Block Gen III LM7:325 (5.3L)
Description_ASM	Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen III LS1:346 (5.7L);Chevrolet:Small-Block Gen III LS2:364 (6.0L);Chevrolet:Small-Block Gen IV LC9:325 (5.3L);Chevrolet:Small-Block Gen IV LH8:325 (5.3L);Chevrolet:Small-Block Gen IV LMF
Description_ASM	Chevrolet:Small-Block Gen III LS1:346 (5.7L)
Description_ASM	Chevrolet:Small-Block Gen III LS2:364 (6.0L)
Description_ASM	Chevrolet:Small-Block Gen IV LC9:325 (5.3L)
Description_ASM	Chevrolet:Small-Block Gen IV LH8:325 (5.3L)
Description_ASM	Chevrolet:Small-Block Gen IV LMF:325 (5.3L)
Description_ASM	Chevrolet:Small-Block Gen IV LMG:325 (5.3L)
Description_ASM	Chevrolet:Small-Block Gen IV LY5:325 (5.3L)
Description_DEF	Engine Intake Manifold
Description_DES	INTAKE MANIFOLD
Description_EXT	Edelbrock Performer RPM LS1 Intake Manifold Without Timing Control Module for Gen III LS
Description_FAB	Also Fits LM7(5.3L); LR4(4.8L) and LQ4(6.0L) Eng.
Description_FAB	Excellent for Engine Retro-Fit Applications
Description_FAB	For 1500 To 6500 RPM Street-Driven Performance
Description_FAB	Manifold Only
Description_INV	Performer RPM LS1 Manifold Only Carb
Description_KEY	71181; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Single-Plane; Tunnel-Ram; Cross-Ram; Performer; Performer RPM; Victor JR.; Super Victor; Victor; Dual-Quad; Slingshot; Polished
Description_LAB	Performer RPM Small Block Chevy LS1 Intake Manifold Only
Description_MKT	Edelbrock part #71187 Performer RPM LS1 intake manifold is designed for the popular Chevrolet LS1 (5.7L) small-block V8 originally used in 1997 and later Corvettes and 1998-02 Camaros and Firebirds. It also fits the Corvette LS6 engine and any other Gen III engine including the LM7 (5.3L), LR4 (4.8L), and LQ4 (6.0L). It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve from 1500 to 6500 rpm. The Performer RPM LS1 is available with an optional wiring harness and electronic Timing Control Module made by MSD this ignition module is for LS1 (24x) ignitions only and works with OE sensors to fire the Coil-on-Plug ignition system and offers a choice of six timing curves (sold separately). A special throttle and trans bracket that works with 700R-4, 200R-4 and Turbo 350 transmissions is included, making the LS1 engine an easy retro-fit into any muscle car, street rod or marine application.
Description_SHO	{ Sellable : Yes }
Description_SHP	{ eo : 5in.}
Description_TRA	Carb Flange height: 4.95"
Description_TRA	Carburetor size (CFM) should be selected based on your specific engine combination.
Description_TRA	Crankshaft sleeve #HP3795 and Flexplate #HP4004 is recommended when using a TH350, TH400 or 700R4 on a LS1
Description_TRA	DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
Description_TRA	Edelbrock LS1 Timing Control Module #91238 works on LS1 24x reluctor wheel (crank trigger) applications only
Description_TRA	Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Description_TRA	LS1 (24x) applications can be recognized by the rear mounted cam position sensor which is black in color, while LS2 (58x) cam sensor is mounted in the timing cover and is gray in color.
Description_TRA	LS2 applications with 58x reluctor (crank trigger) requires MSD #6012 ignition controller. Please contact MSD tech for details (915) 857-5200 or www.msdperformance.com. LS1 (24x) applications can be recognized by the rear mounted cam (A) LS1 Timing Control Module #91238 works on LS1 24x reluctor wheel (crank trigger) applications only
Description_TRA	Manifold Only
Description_TRA	NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
Description_TRA	Port exit dimensions: .98"x 2.72"
Description_TRA	Recommended intake gasket: LS1/LS6 style individual port o-ring seals or Edelbrock #7386
Description_TRA	Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
Description_TRA	these items are available through Hughes Performance retailers or you can call Hughes at 800-274-RACE
Description_TRA	To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.
Description_TRA	Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA	• Recommended intake gasket: LS1/LS6 style individual port o-ring seals or Edelbrock # 7386 • Carb Flange height: 4.95in. • Manifold Only • Port exit dimensions: .98in.x 2.72in. • Edelbrock LS1 Timing Control Module # 91238 works on LS1 24x reluctor wheel (crank trigger) applications only; LS2 applications with 58x reluctor (crank trigger) requires MSD # 6012 ignition controller. Please contact MSD tech for details (915) 857-5200 or www.msdperformance.com. LS1 (24x) applications can be recognized by the rear mounted cam (A) LS1 Timing Control Module # 91238 works on LS1 24x reluctor wheel (crank trigger) applications only • LS1 (24x) applications can be recognized by the rear mounted cam position sensor which is black in color; while LS2 (58x) cam sensor is mounted in the timing cover and is gray in color. • Crankshaft sleeve # HP3795 and Flexplate # HP4004 is recommended when using a TH350; TH400 or 700R4 on a LS1; these items are available through Hughes Performance retailers or you can call Hughes at 800-274-RACE • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Carburetor size (CFM) should be selected based on your specific engine combination. • To ensure maximum performance and a proper seal; Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used.
EGR Port	No
finish	Polished
Flange Type	4150
Front Maximum Height	4.500
Gasket Or Seal Included	No
Grade Type	Performance
height	7.5
length	23.62
LTL	N
Material	Aluminum
Rear Maximum Height	5.400
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Series	Performer RPM
Single Or Dual Plane Type	Dual
Vehicle Model	Chevrolet
weight	21.0
width	14.75
