Product Details
＋

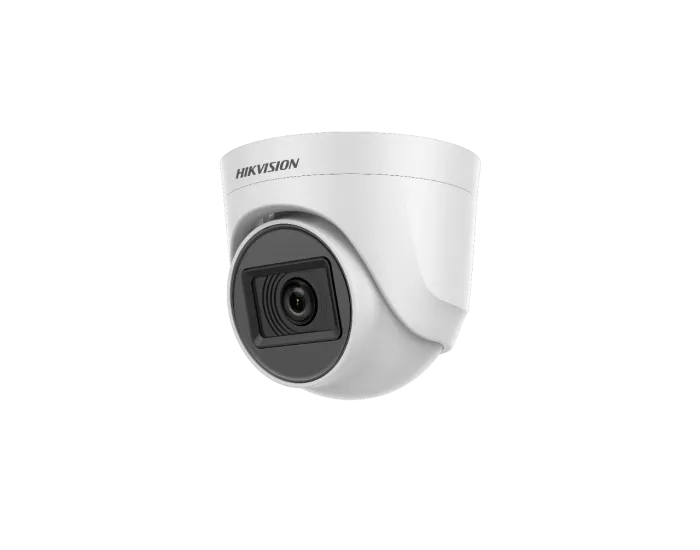

Hikvision Dome 2MP WDR 76D0T ITPF 2.8 MM DS-2CE76D0T-ITPF
- 2 MP turret camera
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/25s to 1/50, 000 s
NTSC: 1/15 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
