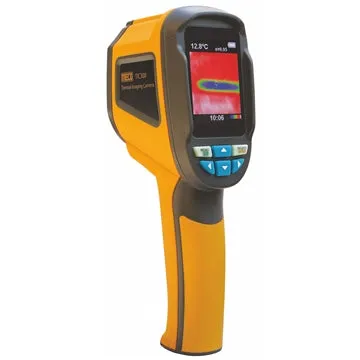

The Meco TIC300 Handheld Thermal Imaging Camera is a compact and powerful tool designed for professionals requiring precise temperature measurement and thermal imaging capabilities. Ideal for applications such as electrical inspections, mechanical troubleshooting, building diagnostics, and preventive maintenance, this device offers real-time visualization of heat patterns, enabling quick identification of temperature anomalies.

Key Features:

• High-Resolution Thermal Imaging: Equipped with a 60 x 60 pixel thermal sensor, providing clear and detailed images for accurate analysis.
• Wide Temperature Measurement Range: Measures temperatures from -20°C to 300°C (-4°F to 572°F), suitable for various industrial and commercial applications.
• Thermal Sensitivity: Features a sensitivity of 0.15°C, allowing detection of minute temperature differences.
• Multiple Color Palettes: Offers five color palettes—Iron Red, Rainbow, Rainbow High Contrast, Grey Scale (White Glow), and Grey Scale (Black Glow)—to enhance image interpretation.
• Real-Time Thermal Imaging: Provides real-time visualization of temperature variations, facilitating immediate assessment and decision-making.
• Image Storage: Includes a 4GB Micro SD card for storing captured images in BMP format, enabling easy documentation and analysis.
• User-Friendly Interface: Features a 2.4-inch color display and intuitive controls for easy operation.
• Adjustable Emissivity: Allows adjustment of emissivity from 0.1 to 1.0 to accommodate different material surfaces for accurate measurements.
• Portable Design: Lightweight and ergonomically designed for comfortable handheld use in various environments.

Specifications:

• Display: 2.4-inch color LCD
• Resolution: 60 x 60 pixels (3600 total pixels)
• Field of View (FOV): 20° x 20°
• Shortest Focal Length: 0.5 meters
• Thermal Sensitivity: 0.15°C
• Temperature Range: -20°C to 300°C (-4°F to 572°F)
• Accuracy: ±2% of reading or ±2°C, whichever is greater
• Wavelength Range: 8 to 14 µm
• Image Capturing Frequency: 6 Hz
• Emissivity: Adjustable from 0.1 to 1.0
• Focus Mode: Fixed
• Image Storage: 4GB Micro SD card (included)
• File Format: BMP
• Power Supply: Four 1.5V AA batteries
• Dimensions: 212 x 65 x 92 mm
• Weight: Approximately 320 grams (including batteries)

Box Includes:

• Meco TIC300 Handheld Thermal Imaging Camera
• Four 1.5V AA batteries
• 4GB Micro SD card (installed)
• Instruction manual
• Carrying case
• Wrist strap

Applications:

• Electrical Inspections: Identifying overheating components, loose connections, and potential failure points in electrical systems.
• Mechanical Troubleshooting: Detecting friction points, misalignments, and wear in mechanical equipment.
• Building Diagnostics: Locating insulation deficiencies, moisture intrusion, and structural anomalies.
• Preventive Maintenance: Monitoring equipment health to prevent unexpected downtime and extend service life.
• Automotive Industry: Assessing engine performance, exhaust systems, and HVAC efficiency.
• Archaeological Studies: Revealing hidden structures and features through thermal contrasts.
