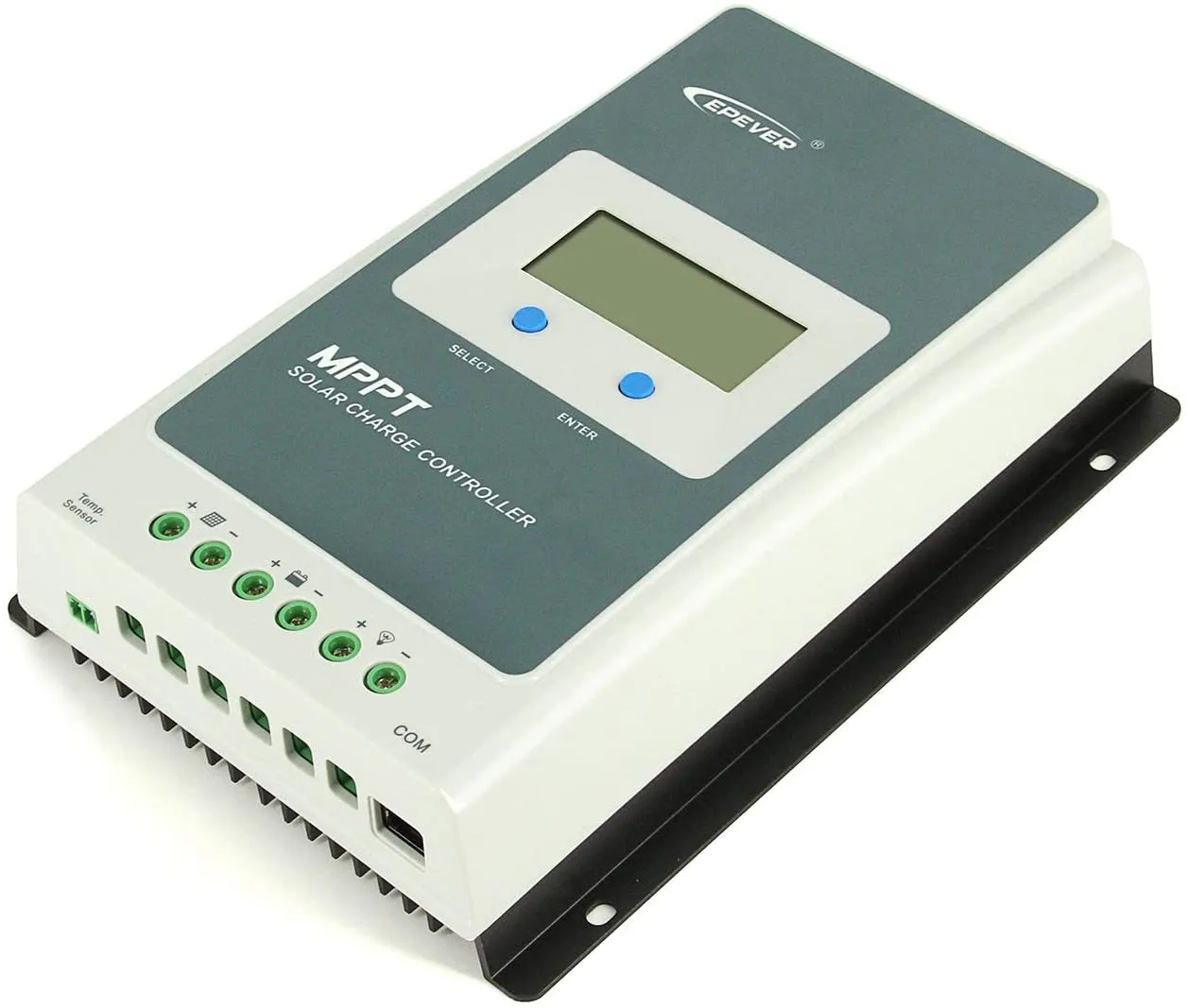

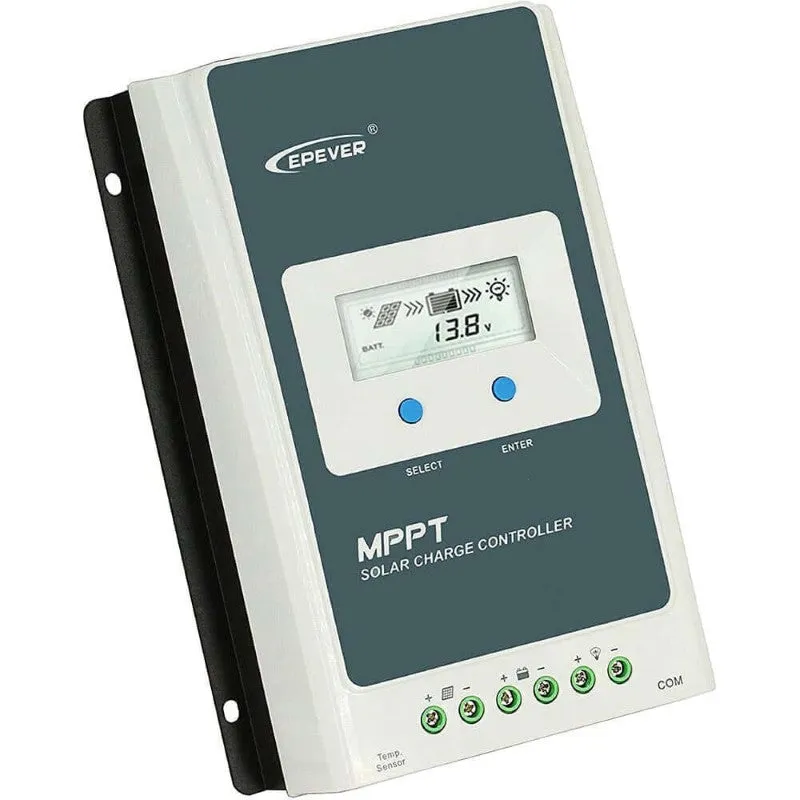

30A Tracer MPPT Solar Charge Controller

Introducing the 30A Tracer MPPT Solar Charge Controller, a powerhouse of features for your solar power system. This controller combines efficiency, flexibility, and comprehensive protection to ensure optimal performance for your solar setup.

Features:

Load Control Modes: Choose from manual control, lighting ON/OFF, and light On Timer for versatile use.
Efficient MPPT Technology: Achieve efficiency levels of over 99.5% with Advanced Maximum Power Point Tracking.
Dynamic CD Display: Monitor real-time data and working conditions effortlessly.
PC Monitoring: Seamlessly check data and adjust parameters through PC or external displays.
Lithium Battery Compatibility: No need for the MT-50 display; choose from three standard battery settings. Enjoy 3-stage charging (Bulk, Boost, Float) with Equalize function.
Battery Type Settings: Tailor settings for Flooded, Gel, Sealed batteries, or user-defined configurations.

Technical Specifications:

Rated Charge Current: 30A
Rated Discharge Current: 30A
Battery Input Voltage Range: 8-32V
Max. PV Open Circuit Voltage: 100V
Max. PV Input Power: 12V/390W, 24V/780W
Enclosure: IP30

Electronic Protections:

PV Reverse Polarity Protection
PV Short Circuit Protection
PV Overcurrent Alarm Protection
Load Short Circuit Protection
Load Overload Protection
Controller Overheating Protection
Battery Overvoltage Protection
Battery Over Discharge Protection

Additional Features:

Auto-identification and display of controller type, model, and relevant parameter data.
Large-screen multifunction LCD for comprehensive operational data.
Real-time energy statistics recording.
Enhanced communication via RS485 for longer distances.
Diverse load control modes: manual, light ON/OFF, Light ON Timer, Time Control.
Battery type selection: Gel, Sealed, Flooded, and USER type.

Packaging Content:

1 x MPPT Tracer 3210AN Solar Charging Controller
1 x User Manual

Upgrade your solar system with the 30A Tracer MPPT Solar Charge Controller, combining efficiency, flexibility, and comprehensive protection for optimal performance.
