Product Details
＋

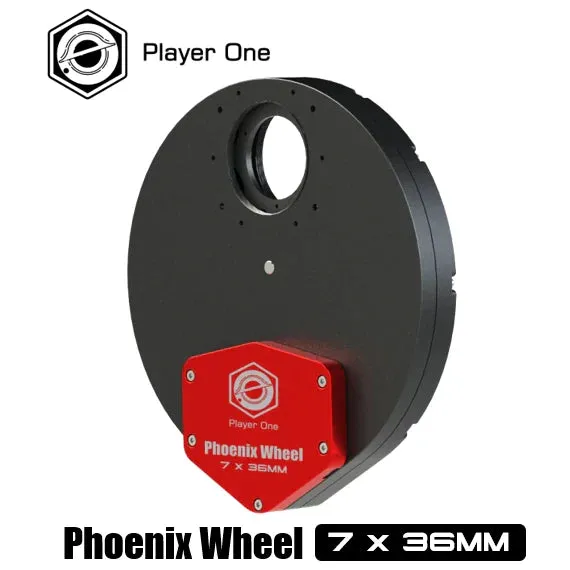

Phoenix Filter Wheel 7x36mm
- Support model: Poseidon series cameras, Artemis series cameras.
- Body Threads: M48*0.75 on both sides
- Filter size: 36mm unmounted filter is required
- Material：Aluminum 6061-T6
- Optical Length: 20mm
- Weight: 522g
Hall Sensing Technology
Traditional infrared sensor scanning positioning hole to locate position, this way positioning accuracy depends on the size of the positioning hole, the smaller the hole, the higher the accuracy, but the diameter of the hole must have at least 1mm diameter, otherwise it is difficult to manufacture. But if use magnet on filter plate, Hall sensor will detect the centre of the magnet, the positioning accuracy is better than infrared sensor.
Hybrid stepping motor
This super thin hybrid stepper motor can provide very smooth rotation, almost no vibration when change the filter position.

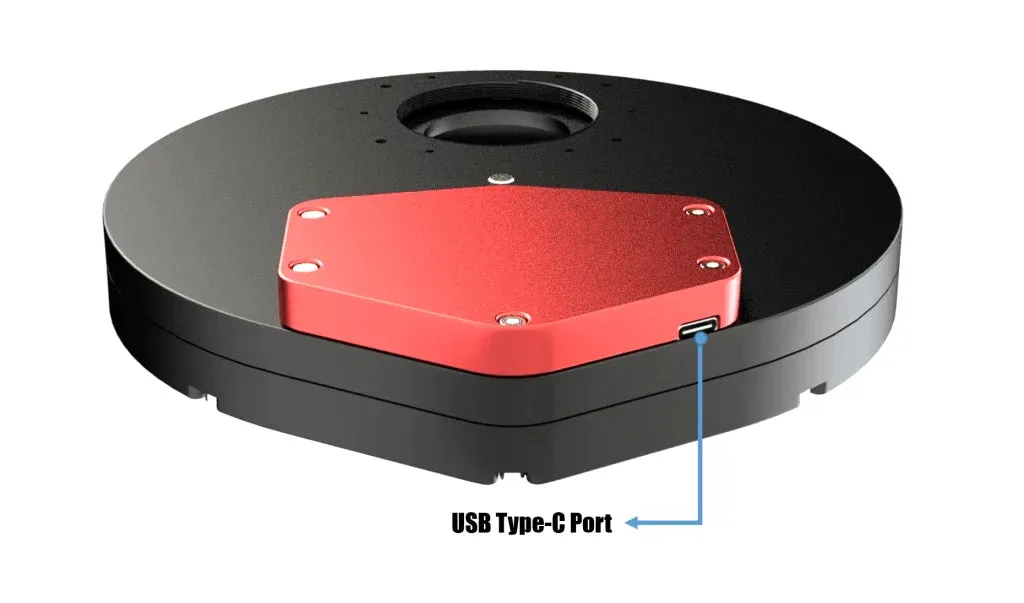

Type-C data port
Using USB Type-C port can reduce the thickness of motor housing.
In the Box
- Phoenix Wheel 7x36
- Type-C to Type-A 2M USB 2.0 Cable
- Filter Mask x8
- M48M-M48F 17.5mm Extender
- M2.5 Screws x30
- Screwdriver x1
- M2 Hexagonal Wrench
