Features:

• RF Power Meter, 2 Channels
• Compatible with RFP3000 Series USB RF Peak Power Sensors
• Capture/display/analyze peak and average power
• Independent or synchronous multi-channel measurements (up to 4 channels)
• Trigger synchronization
• Test source for sensor verification
• Display 16 common power measurements
• Ethernet:10/100/1000 BaseT; HiSLIP
• Supports SCPI-1999.0
• HDMI output for mirror display
• Sensors can be used as standalone instruments

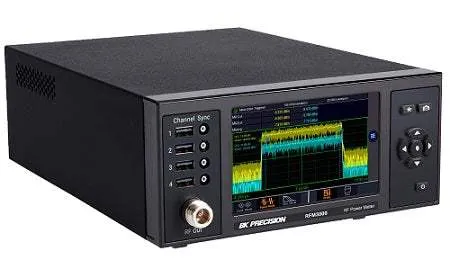

The RFM3000 Series of meters work in combination with B&K Precision's RFP3000 Series of USB RF Peak Power Sensors to extend their capabilities and eliminate the need for a remote computer. This benchtop solution supports capturing, displaying, and analyzing peak and average RF power in both the time and statistical domains through an intuitive, multi-touch touchscreen display.

Two on-screen markers can be dragged over a waveform for greater measurement details. A selection of useful trigger options and channel synchronization settings provide the perfect tool set for working with multiple channel measurements.
