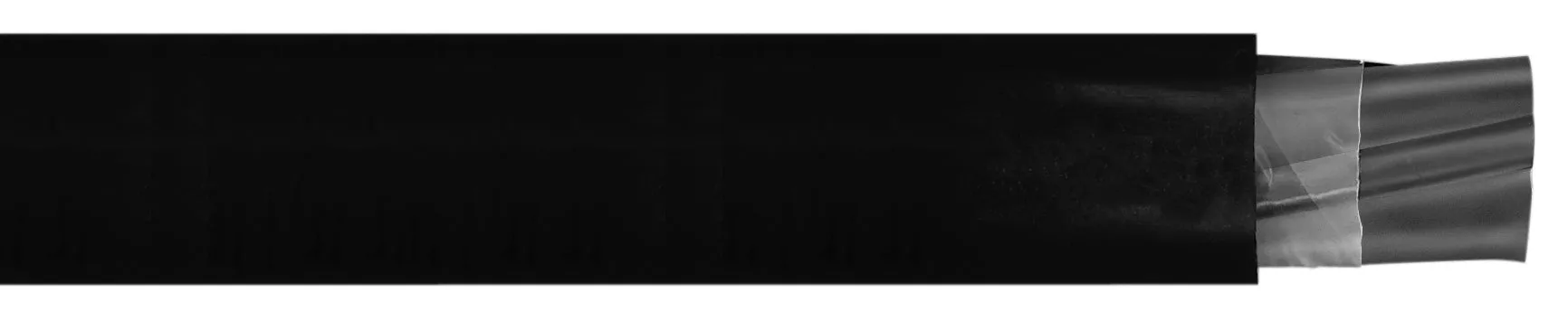

1/0 AWG 3C Tray Cable FREP-CPE With Ground M-4 600V Cable

Applications:

Tray FREP-CPE Cable is designed for use for power distribution channels when voltage does not exceed 600 volts. It is a type of instrumentation cable which is insulated and jacketed for maximum chemical and mechanical protection. This cable has a long service life and can withstand harsh outdoor environmental conditions. The cable is printed with numbers and color-coded for easy identification.

This cable is used in raceway systems, cable trays, free air, and direct burial in:

• • Burglar alarms
• • Cash registers
• • Control systems
• • Intercom wiring
• • Petrochemical facilities
• • Industrial control systems

The electrical cable is also suitable for NEC Class 1 Division 2 hazardous locations. XHHW tray cable is equally effective as a power and control cable. The electrical cable is flame-retardant and has a temperature range of -55 C to 150 C.

Also Known As:

1/0 AWG 3C Cable Tray, 1/0 AWG 3C Cable Tray Types, 1/0 AWG 3C Electrical Cable Tray, 1/0 AWG 3C Pvc Cable Tray, 1/0 AWG 3C wire cable tray, 1/0 AWG 3C cable tray wire, 1/0 AWG 3C Tray Instrument Cable, 1/0 AWG 3C Tray Instrumentation Cable, 1/0 AWG 3C TC-ER Cable, 1/0 AWG 3C direct burial tray cable, 1/0 AWG 3C EPR Cable, 1/0 AWG 3C CPE Cable, 1/0 AWG 3C Exposed Run Tray Cable, 1/0 AWG 3C tinned copper tray cable, 1/0 AWG 3C Chlorinated Polyethylene cable, 1/0 AWG 3C Ethylene Propylene Rubber cable,1/0 AWG 3C flame-retardant tray cable,1/0 AWG 3C tray power cable,1/0 AWG 3C tray control cable, 1/0 AWG 3C FREP cable.

Standards:

• • IEEE 1202
• • Underwriters Laboratory (UL) 1581 VW-1
• • UL 44, Type XHHW-2
• • UL 1277 Type TC-ER

Conductor:

The cable has stranded tinned annealed B bare copper conductors that meet the requirements of ASTM B-8. The conductor is flexible and resistant to corrosion and chemicals. The cable has an additional ground conductor.

Insulation:

 Ethylene Propylene Rubber (EPR) insulation is soft, flexible, and flame-retardant.

Jacket:

 The cable has a thermoplastic chlorinated polyethylene (CPE) jacket, which is lead-free. It is flame-retardant and environmentally friendly, as it produces less smoke during the fire. CPE is also tough enough to withstand mechanical damages like abrasion.

Specification:

• AWG: 1/0
• Conductors: 3
• Ground AWG: 6
• Insulation Thickness: .055″
• Jacket Thickness: .080″
• Nom. O.D.: 1.23″
• Lbs./M': 1439
