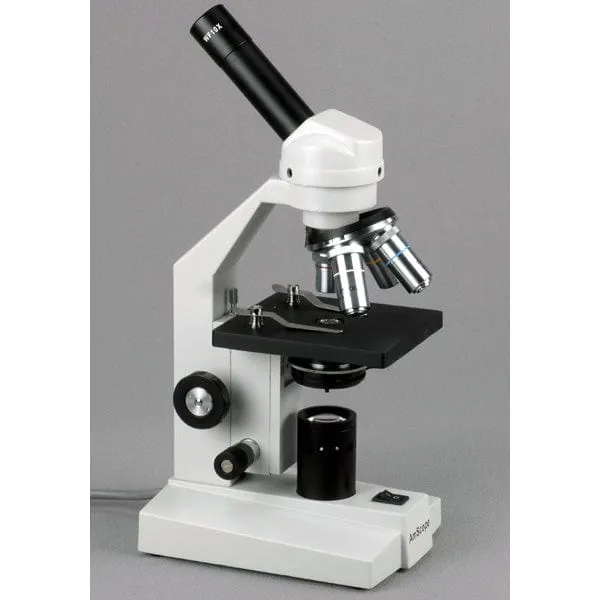

Name: AmScope M500 Series Biological Student Cordless Monocular Compound Microscope 40X-2500X Magnification with LED, USB Digital Camera and 10pc Slide Kit
SKU: 768653

Product Details ＋

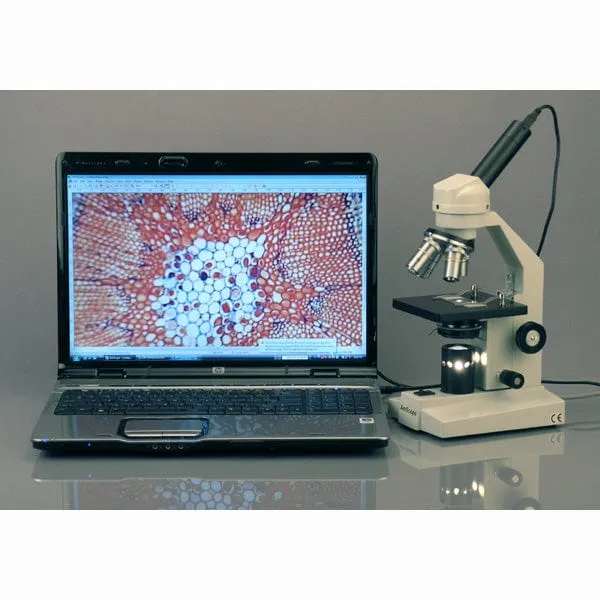

This is a brand new compound microscope with 640x480 Pixel USB2.0 digital image system that captures microscope images and displays live video on your computer screens. It comes with six magnification settings (40X, 100X, 250X, 400X, 1000X & 2500X), coarse & fine focusing and electrical illuminating system plus a 10pcs microscope slide set. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. The slide set includes five blank and five prepared slides packed in a plastic box. The prepared slides provide convenience for you to test the microscope and the blank slides are for you to make your own specimens. This microscopy package meets all the requirements of the textbooks up to college. It is a perfect system for teaching demonstration or clinical examination. It is also an ideal microscope for family or home school applications.

Features:

A great affordable compound microscope with digital image system!
High quality perfect for vets or students
360 degree rotatable monocular head
45 degree inclined eye tube
Large plain stage with clips and stain resistant finish
Separate coarse fine focusing system
Fully coated optical system with high resolution
Crystal clear sharp images
Six levels of magnification: 40X-100X-250X-400X-1000X-2500X
Upward stage stopper for protecting slides and objectives
Built-in electrical illumination system
Abbe condenser with iris diaphragm filter holder
Solid metal frame construction with stain resistant enamel finish
Dual focusing control knobs
Full optical glass elements
All metal mechanical components
Precise ground glass lenses
Four DIN Achromatic objectives included
Two (WF10X and WF16X) eyepieces included
Spare bulb, fuse and a bottle of immersion oil included

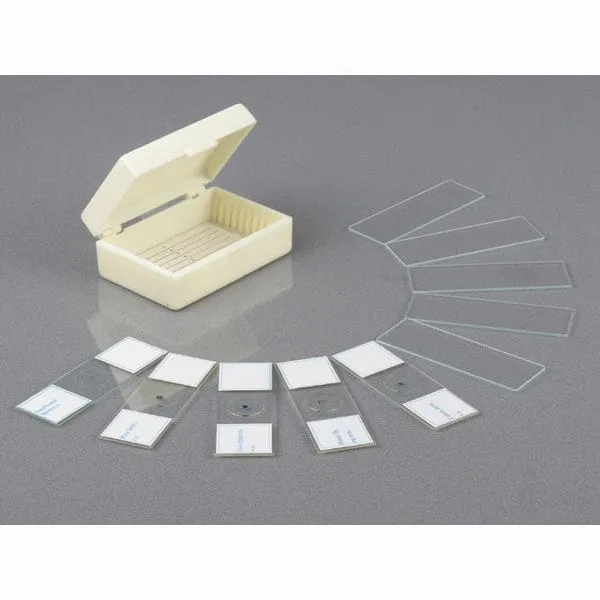

A slide set included with five blank and five prepared slides included.
Prepared slides include pine stem, sunflower stem, onion epidermis, cotton stem and house fly leg
Manufactured under ISO 9001 quality control standard
Excellent five (5) year factory warranty

Specifications:

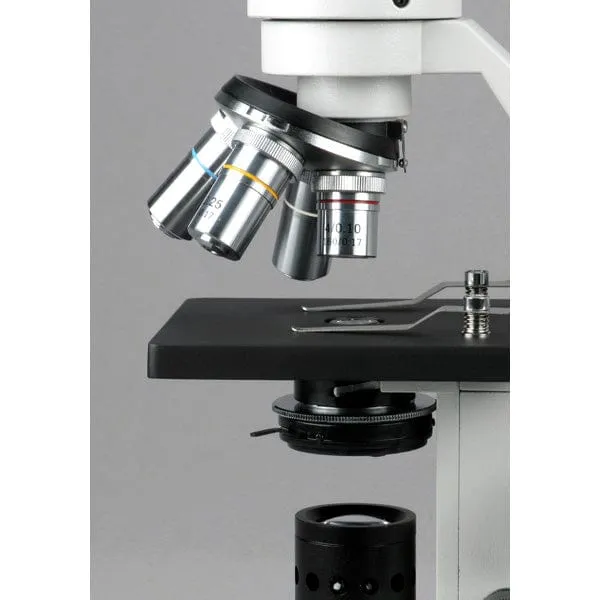

Nosepiece: quadruple
Head: 45 degree inclined monocular
Wide-field Eyepieces: WF10X and WF25X
Achromatic Objectives: 4X, 10X, 40X (spring), 100X (oil, spring)
Stage Dimensions: 4-3/8" x 4-3/4" (110x120mm)
Abbe Condenser: NA=1.25 with iris diaphragm filter
Focusing Control: rack pinion
Illumination: tungsten lamp, 20Watt
Power Supply: 110V (220V version available)
Accessories: dust cover and a bottle of immersion oil
Microscope Dimensions: 7-1/2" x 5-1/8" x 15-0"

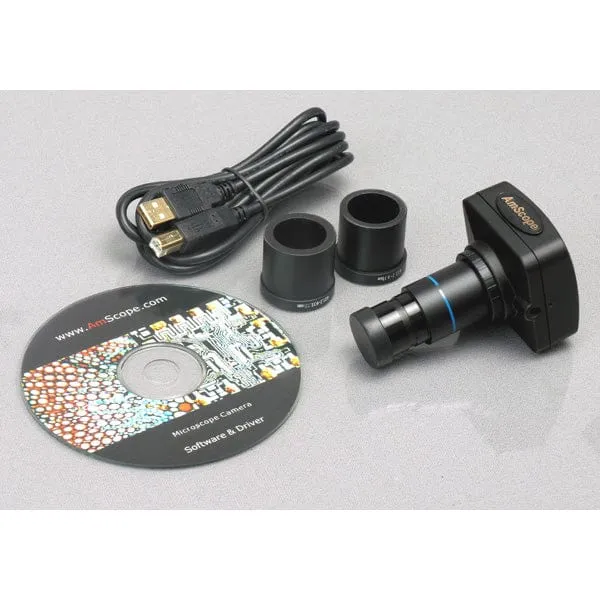

Camera Specifications:

Sensor: Aptina MT9V011
Sensor Type: CMOS
Sensor Size: 3.58x2.69mm
Pixel Size: 5.6
Resolution: 0.3MP
Frame Rate: 30@640x480, 80@320x240
Sensitivity: 1.9V/lux-sec
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8 , Linux kernel 3.13
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

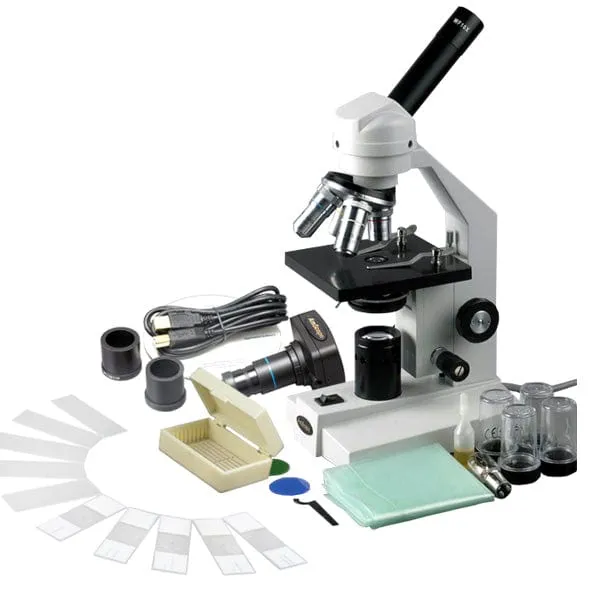

Packing List:
