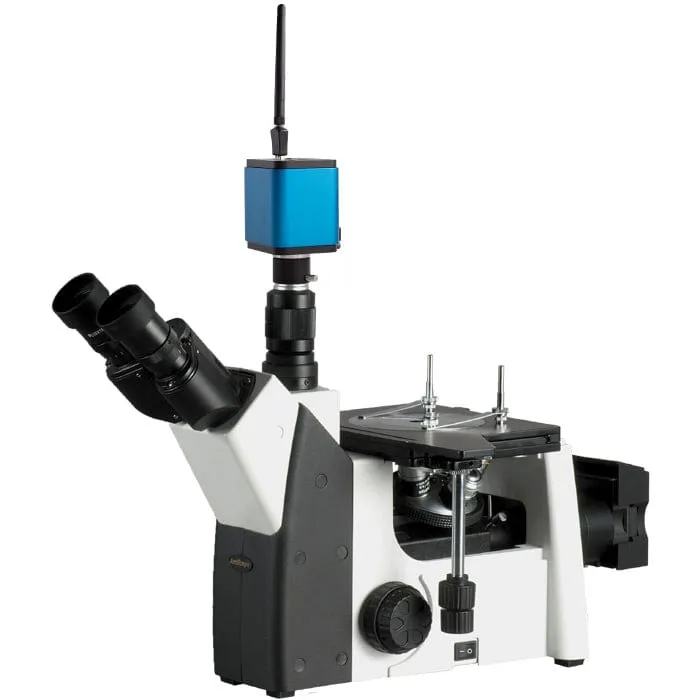

This trinocular inverted metallurgical microscope comes with a trinocular microscope Siedentopf head, four Plan Achromatic objectives, a large mechanical stage and a 1080p/5MP WiFi digital camera, offering eight magnification settings, 50X, 100X, 125X, 200X, 250X, 500X, 1000X and 1250X. The 1080p camera can be connected to an HDMI monitor or TV for live 1080p video at a super-smooth 60fps. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. As well as capturing 1080p video, it can capture still images up to 5MP. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality control applications.

Features :

A inverted metallurgical Plan optical metallographic microscope with digital camera

Wide band power supply system from 90V to 240V

Fully coated optical system with high resolution

Four DIN standard Plan objectives included

Two Pairs of Plan widefield eyepiece included

Intensity-variable LED illumination

Large mechanical stage with stain resistant finish

Coaxial coarse and fine focusing

Focusing tension control mechanism

Low position stage traveling controls

Full optical glass elements

Precise ground glass lenses

All metal mechanical parts

Dual side focusing controls

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Dust cover included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications :

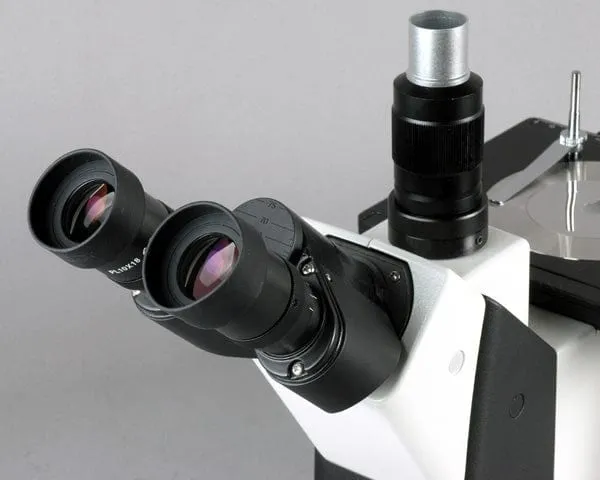

Head: 45 degree inclined trinocular

Nosepiece: quadruple

Focusing Range: 1-5/16" (33mm)

Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)

Mechanical Tube Length: 6-5/16" (160mm)

Camera/Video Trinocular Port: 23mm universal/standard photo tube

Eyepieces: WF10X (18mm Field of View), WF25X

Objectives: Plan Achromatic 5X (0.1 NA), 10X (0.25 NA), 20X (0.40 NA), 50X (Spring, 0.65 NA)

Stage Dimensions: 7-3/32"x 6-1/8" (180x155mm)

Stage Traveling Range: 3-0"x 1-9/16" (75x40mm)

Venire Division: 0.00004" (0.001mm)

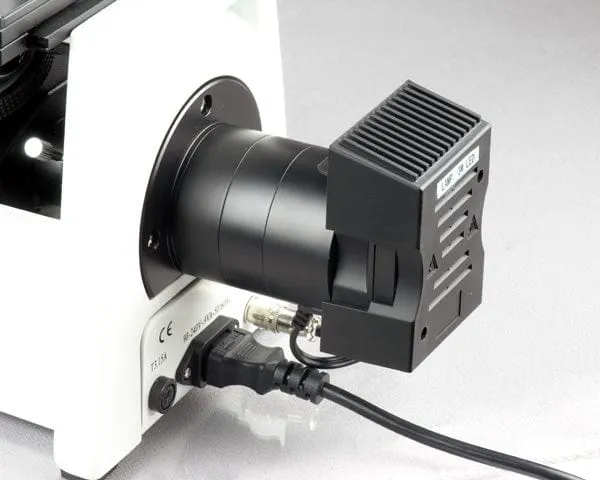

Illumination: 5W LED, 90V-240V wide band, CE certified

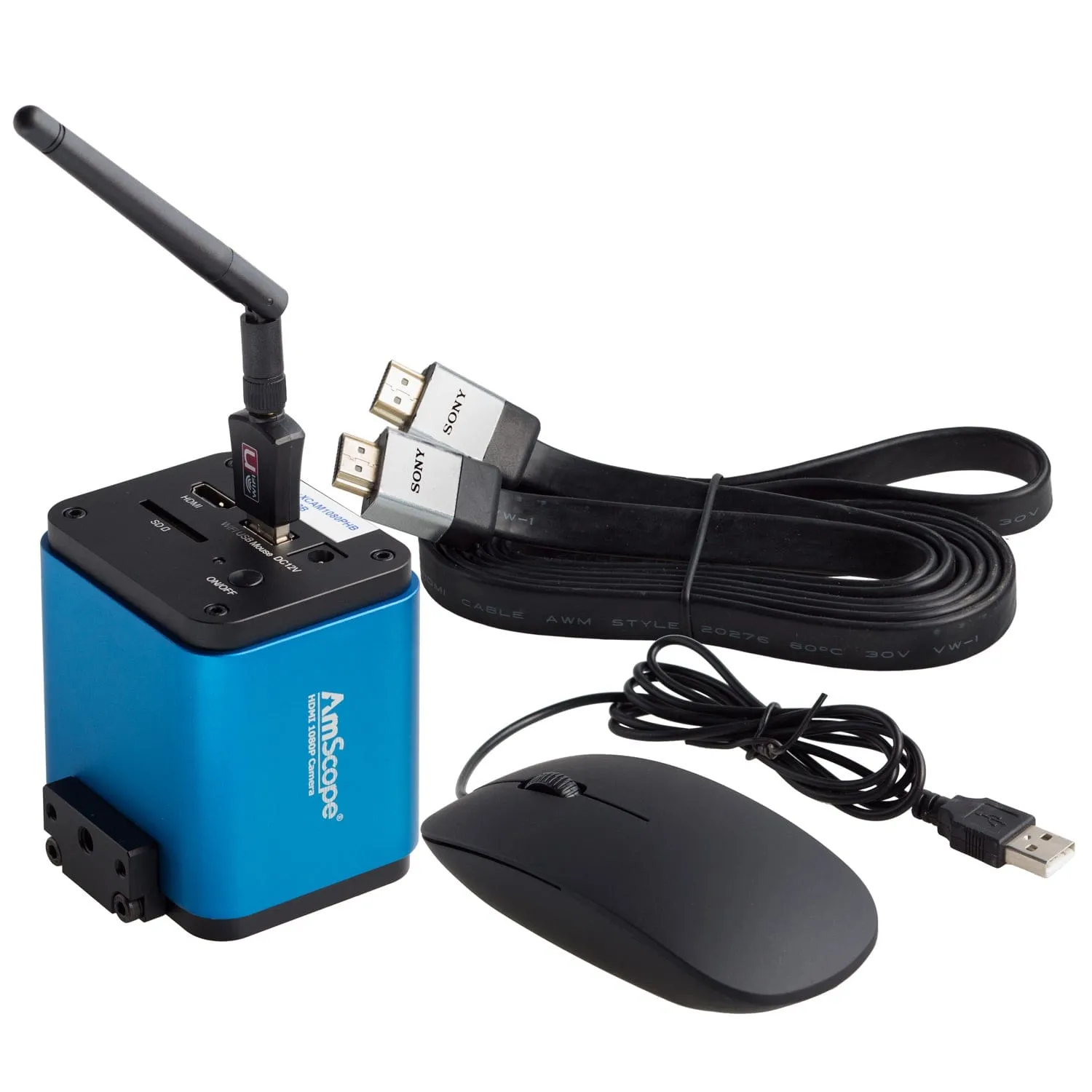

Camera Specifications:

Sensor: Sony IMX178 (color)

Sensor Type: CMOS

Sensor Size: 1/1.8" class

Pixel Size: 2.4

Still Resolution: 5MP

Video Resolution: 1080p

Frame Rate: 60fps @ 1920x1080 (HDMI), 25fps @ 1920x1080 (WiFi, SD)

Sensitivity: 425mV @ 1/30s

Connectivity: HDMI, WiFi, USB

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8 , Linux kernel 3.13

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port or WiFi

Packing List :

One Trinocular Microscope Siedentopf Head

One Inverted Body Frame with Mechanical Stage and Illumination System

One Pair of Plan 10X Widefield Eyepieces

One Pair of Widefield 25X Eyepieces

Four Plan Achromatic Metallurgical Objectives, 5X, 10X, 20X and 50X

One HD Digital Camera

One USB Mouse

One USB WiFi antenna

One software disc

One Power Cord

Dust Cover

Microscope User's Manual

Shipping Weight: 30 lbs
