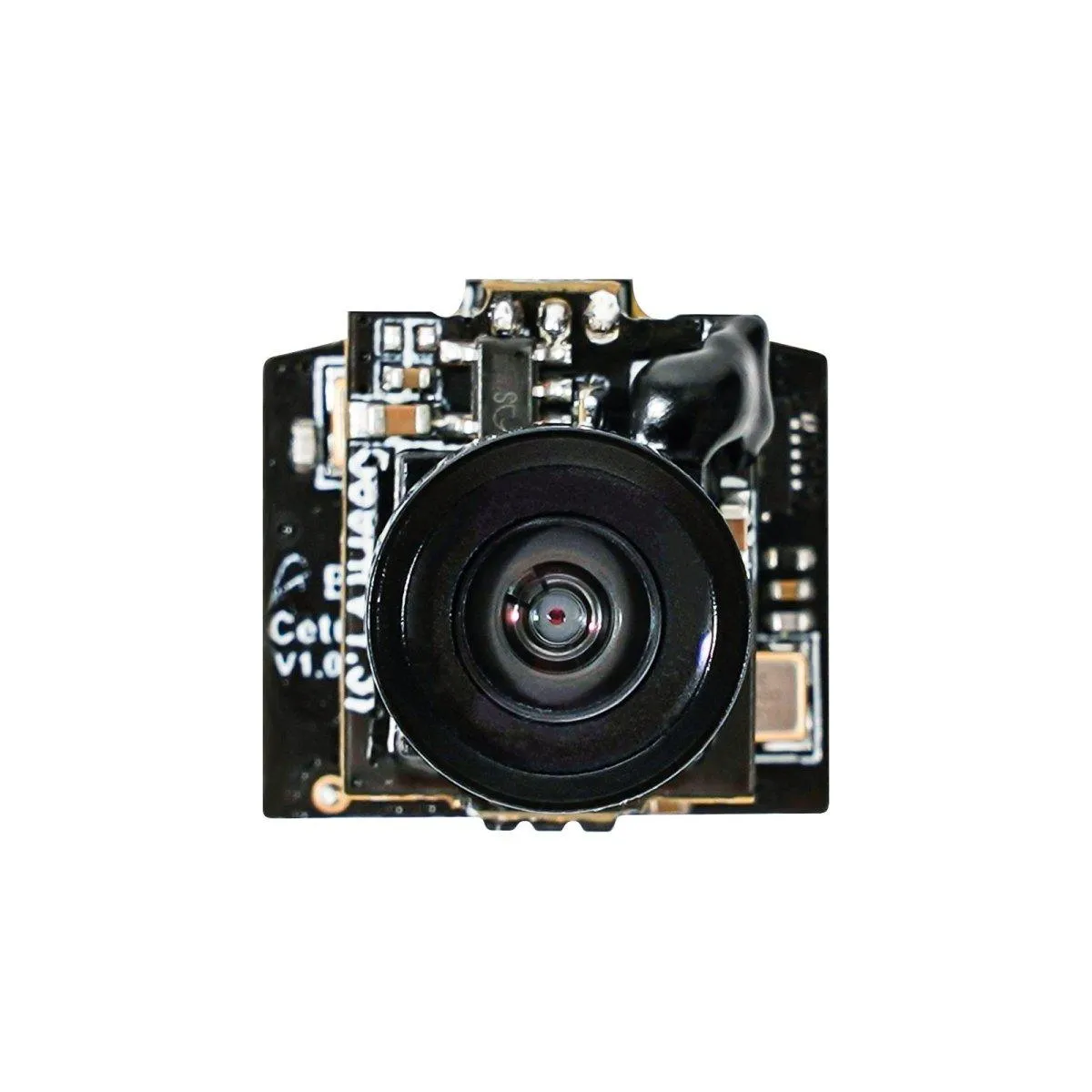

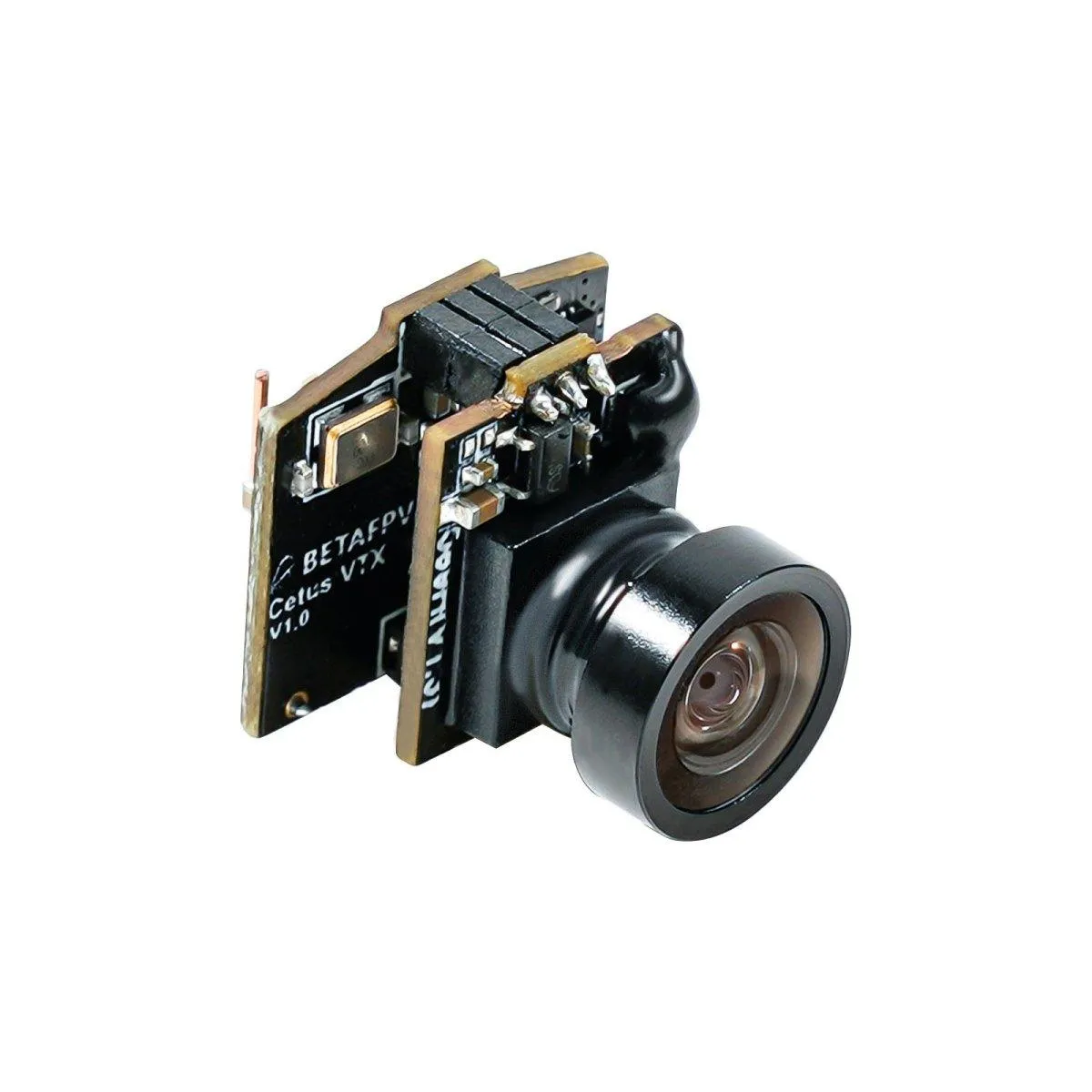

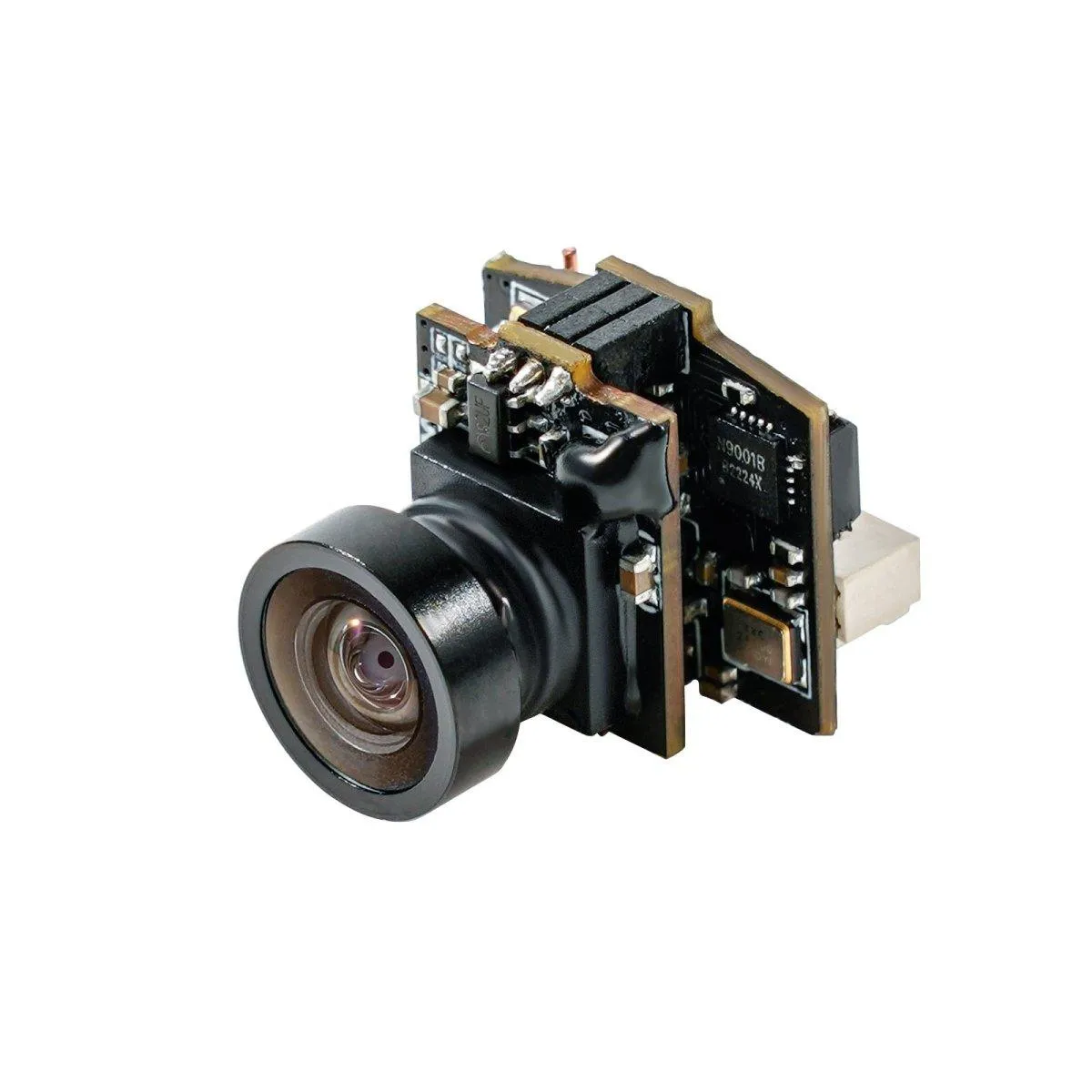

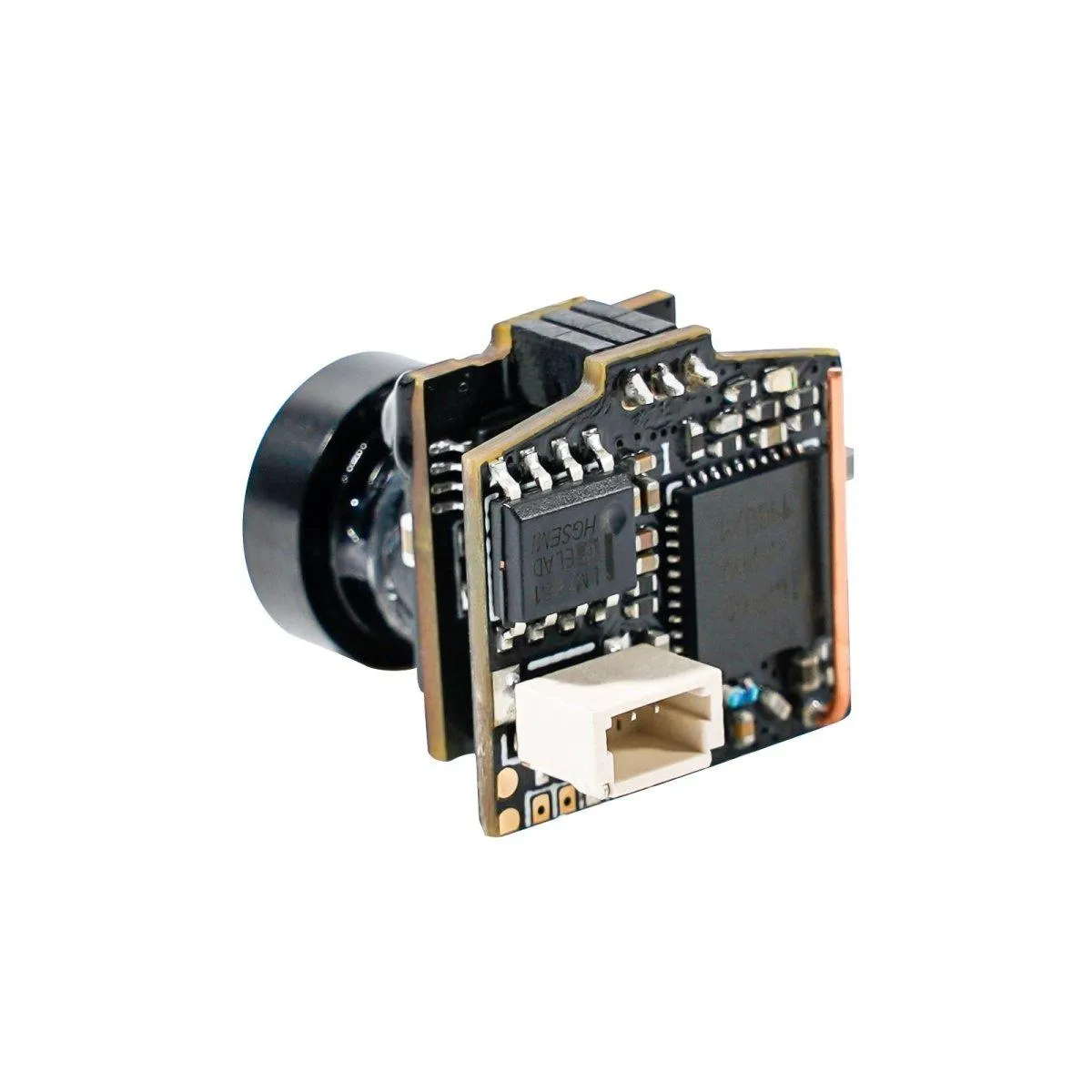

The Cetus Lite Camera and VTX Module are used for upgrading to support the First-person view and also the replacement part for Cetus Lite FPV. Cetus Lite Camera and VTX are pre-build. With a plug-n-play connector, it is very easy for pilots to install without soldering.

Bullet Points

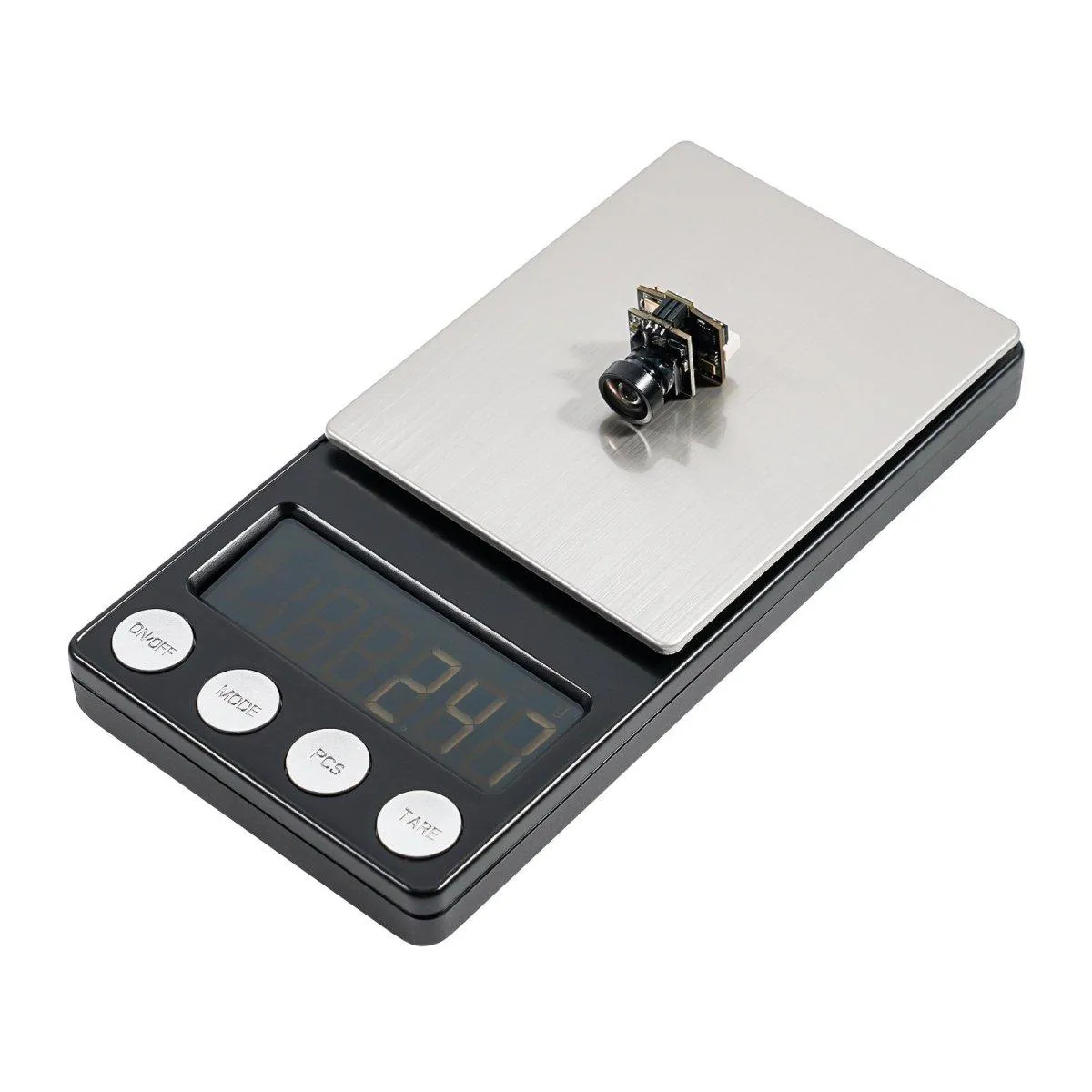

• Miniature, and lightweight design, weight at only 2.47g. The original camera and VTX for Cetus Lite.
• 800TVL resolution and 1/4" CMOS sensor ensure good quality and a clear image.
• Support global WDR with a 4:3 aspect ratio, it can shoot clear dynamic images even in low light conditions.
• With a 1.8mm Lens, and 150° FOV, it is capable of recording wide and beautiful scenes.

Specification

• Item: Cetus Lite Camera and VTX Module
• Image Sensor: 1/4" CMOS Sensor
• Horizontal: 800TVL with Global WDR
• VTX: 25mW
• Signal System: NTSC (4:3)
• Lens: 1.8mm FOV 150°
• Lens External Diameter: 10mm
• Power: DC 3.7V-5.5V
• Dimension: 15.5*14.5*16mm
• Weight: 2.47g (Camera&VTX)

Package

• 1 * Cetus Lite Camera and VTX Module
• 1 * Mounting Part
• 1 * Power Cable
• 4 * Screws
